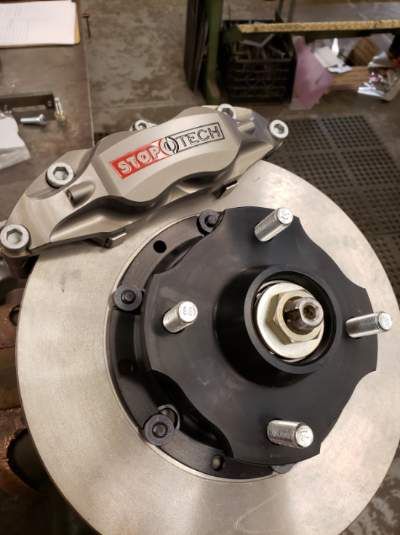

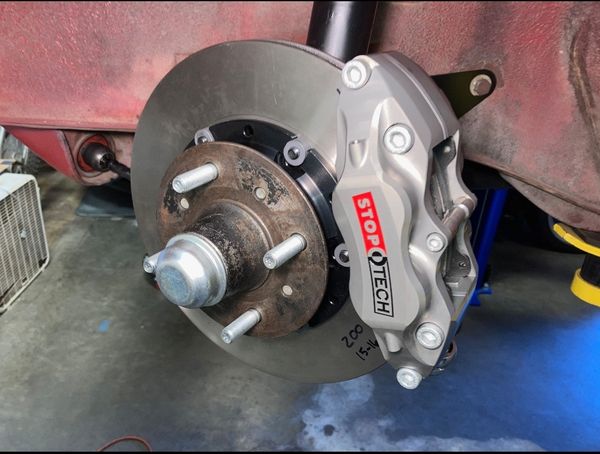

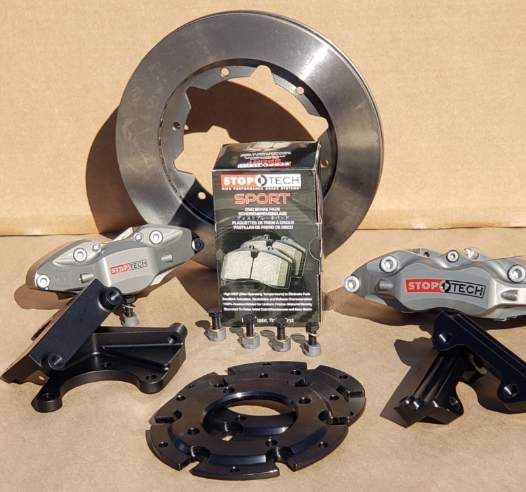

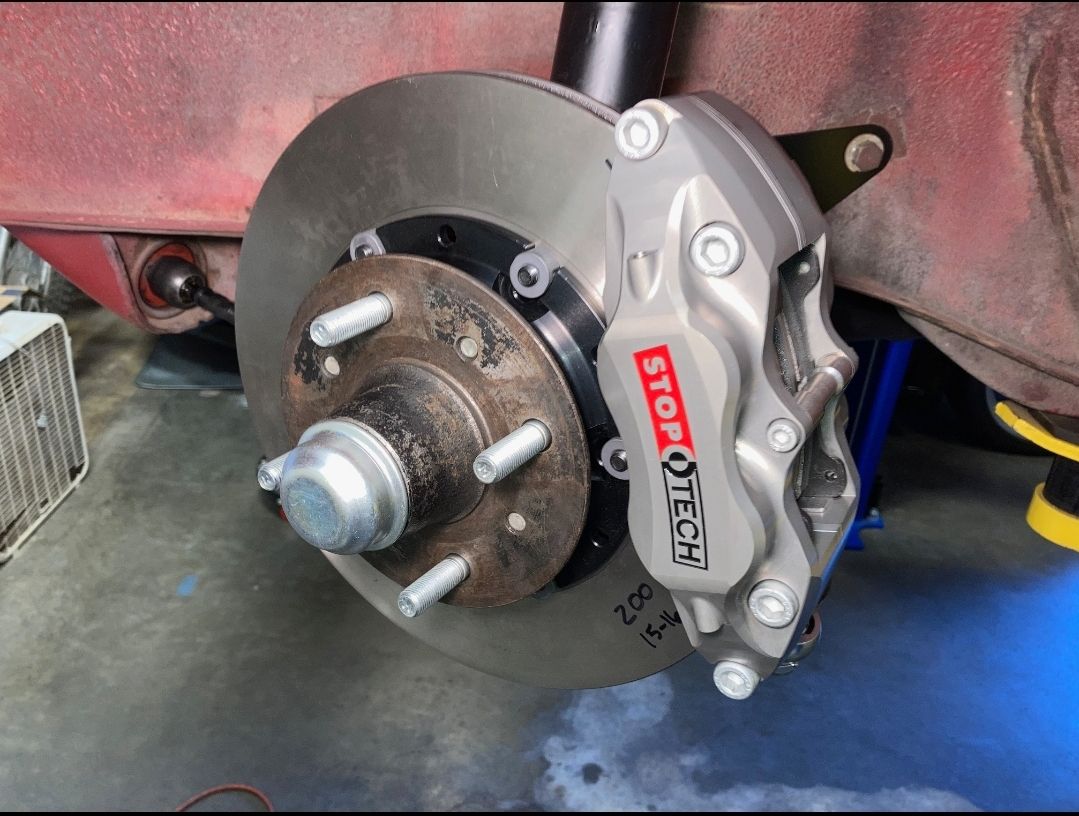

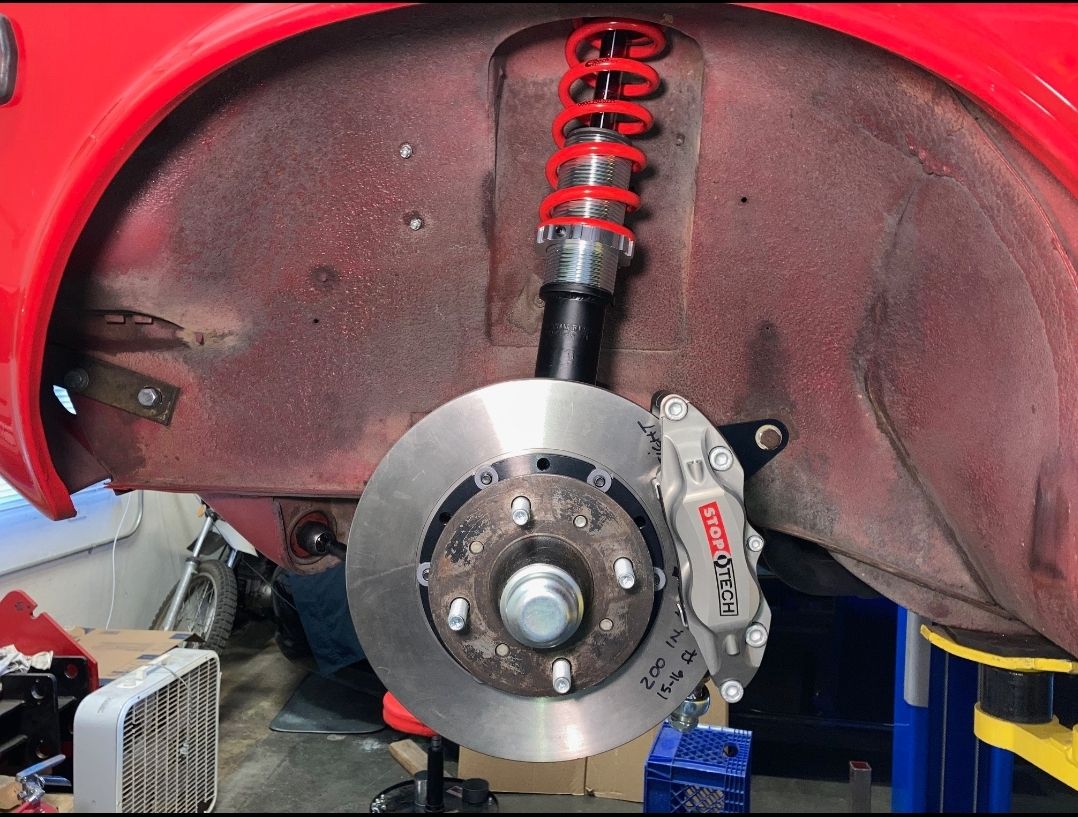

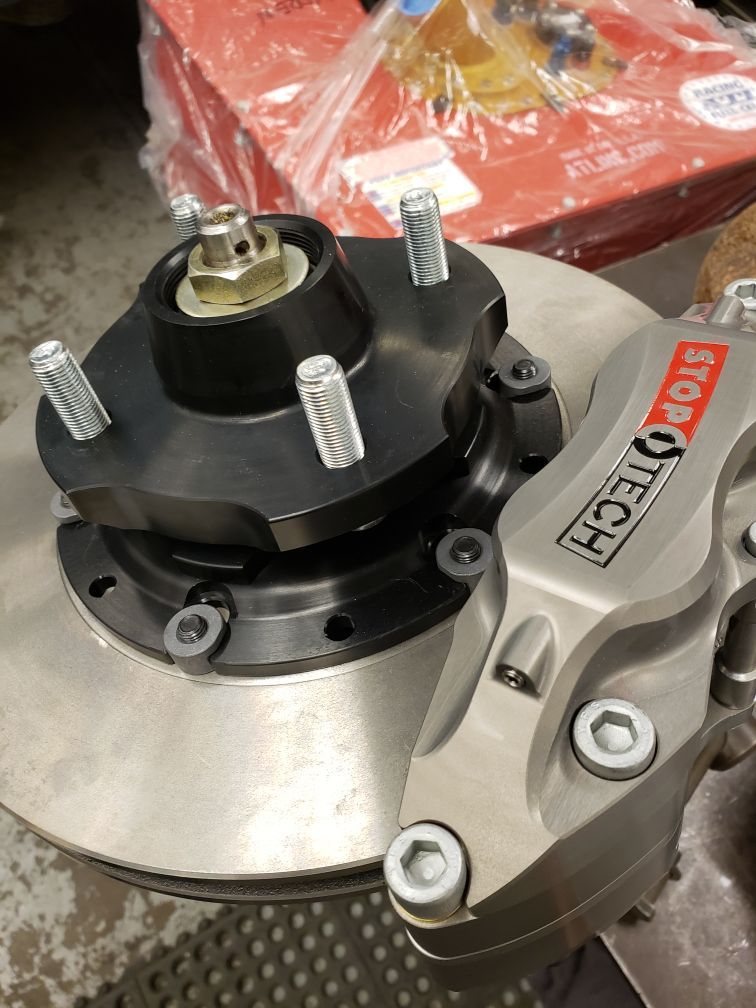

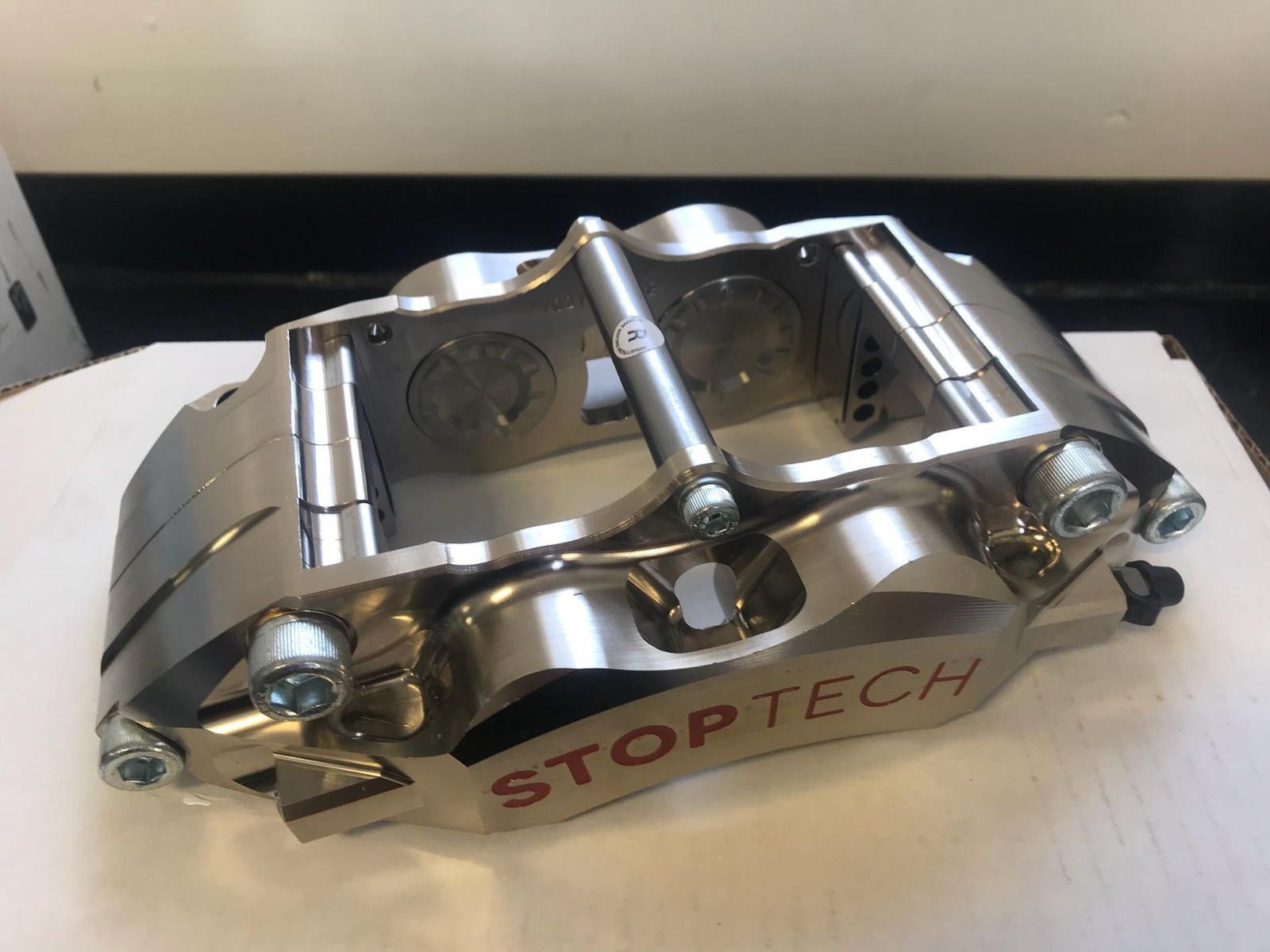

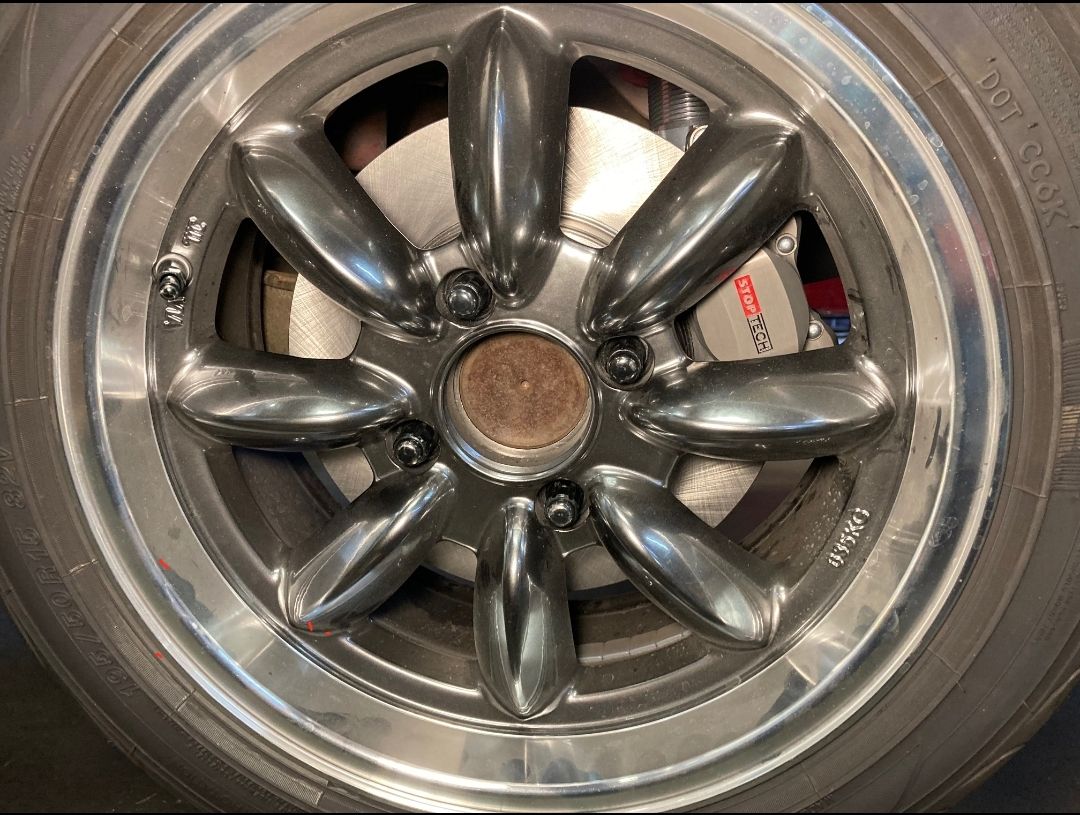

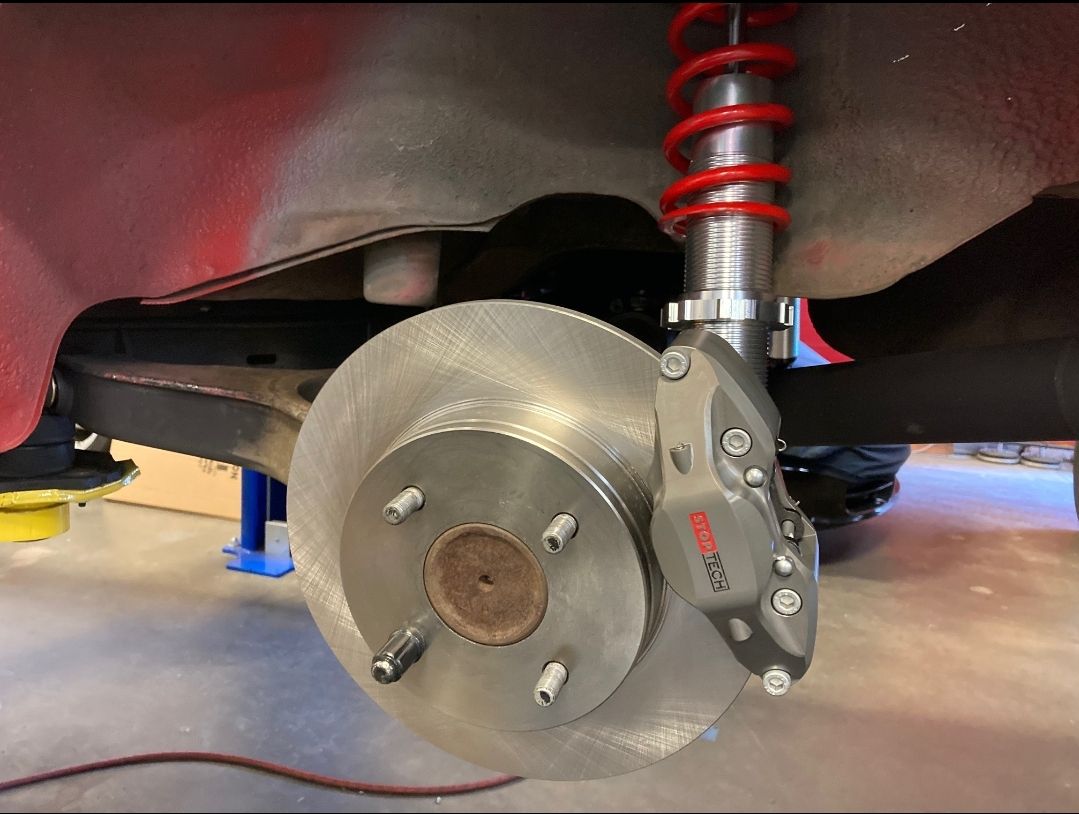

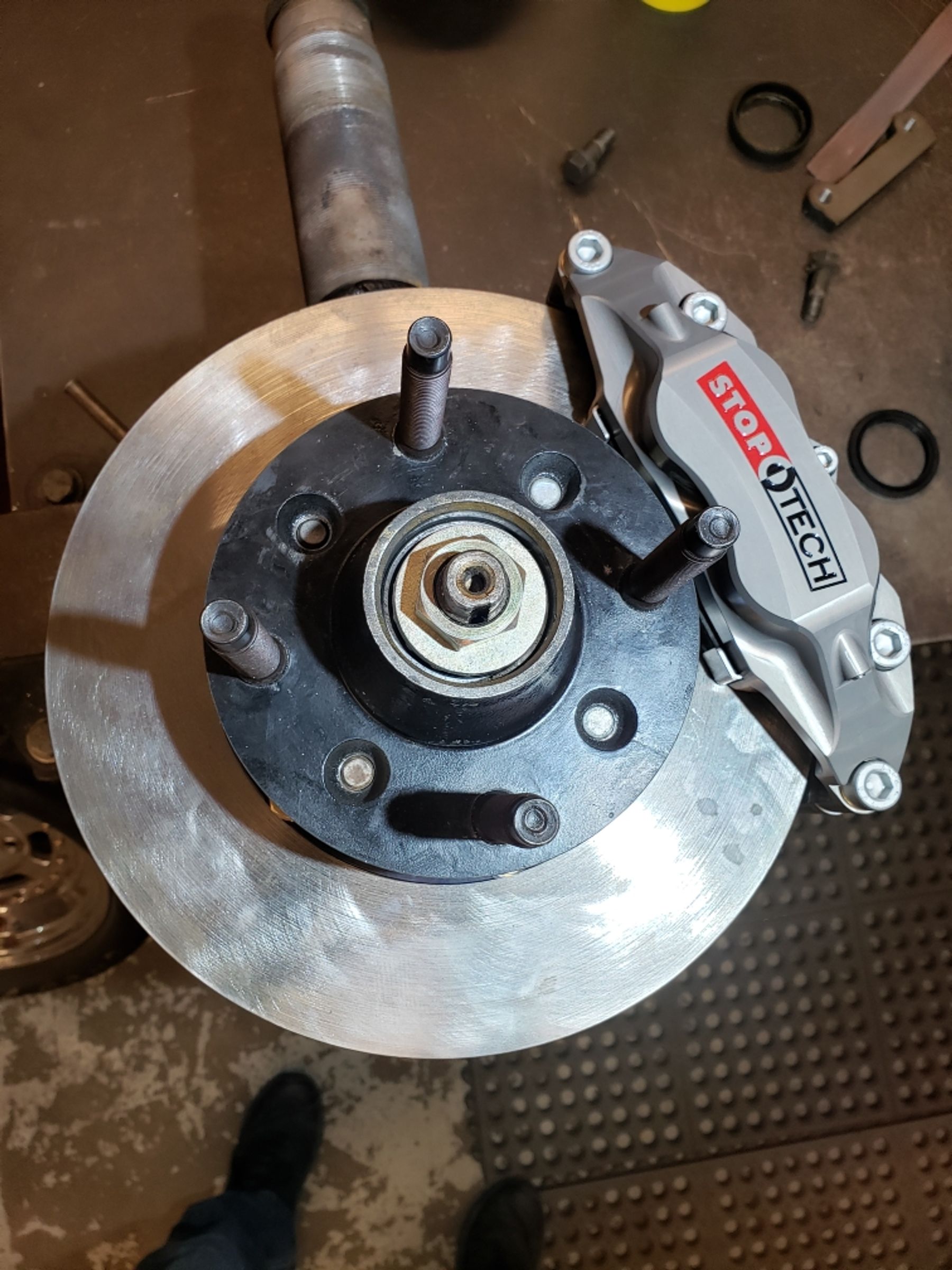

New design Ermish Stoptech 4 wheel disc brake kit. This kit will only fit 280ZX STRUTS! Includes; 11" full floating front rotors, designed for 14" wheels , radial mount mulit size 4 piston directional front calipers, two piston rear calipers, rear rotors , front and rear pads, brakes lines, master cylinder and hardware to complete this bolt on brake kit. For more questions please contact the shop. 510-252-1001
Disc Brake kits & accessories

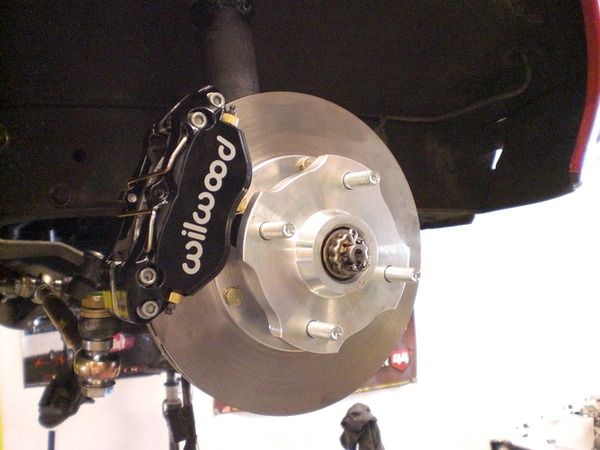

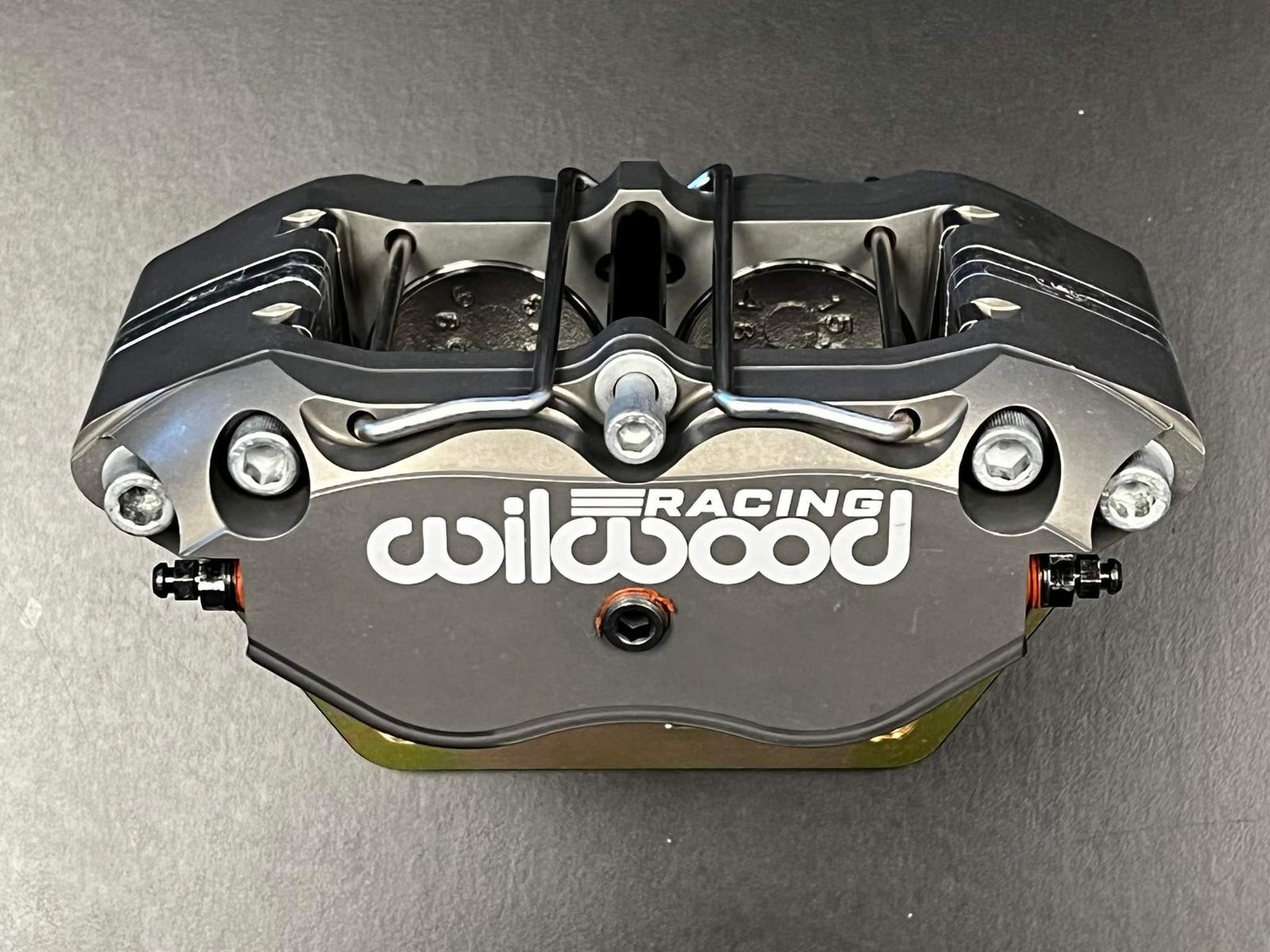

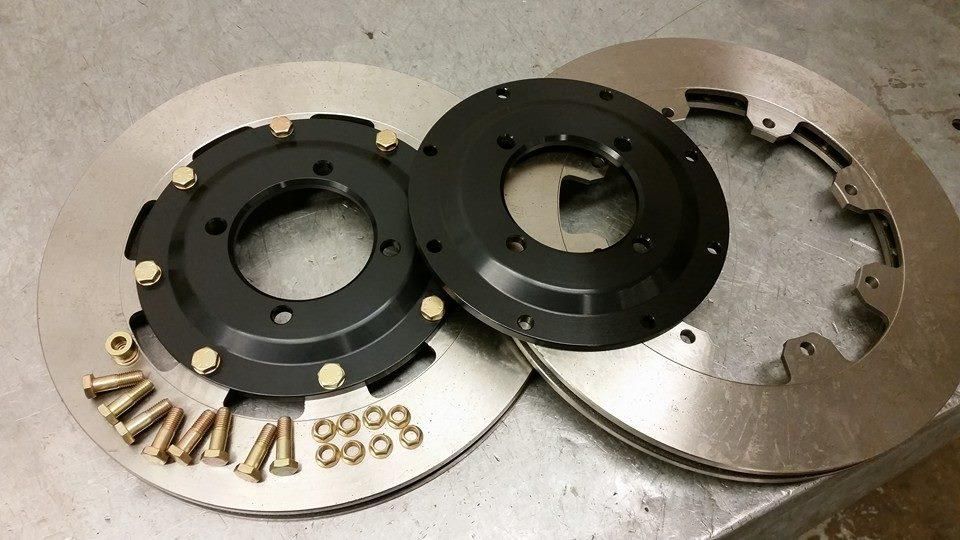

The Wilwood BIG BRAKE kit is used with the "280ZX strut" and a uses a 12.2" Rotor. This kit requires a 15" rim for application. Complete kit comes with new master cylinder, steel braided brake lines, pads, calipers, rotors, caliper adapters, and hardware for complete bolt on installation.

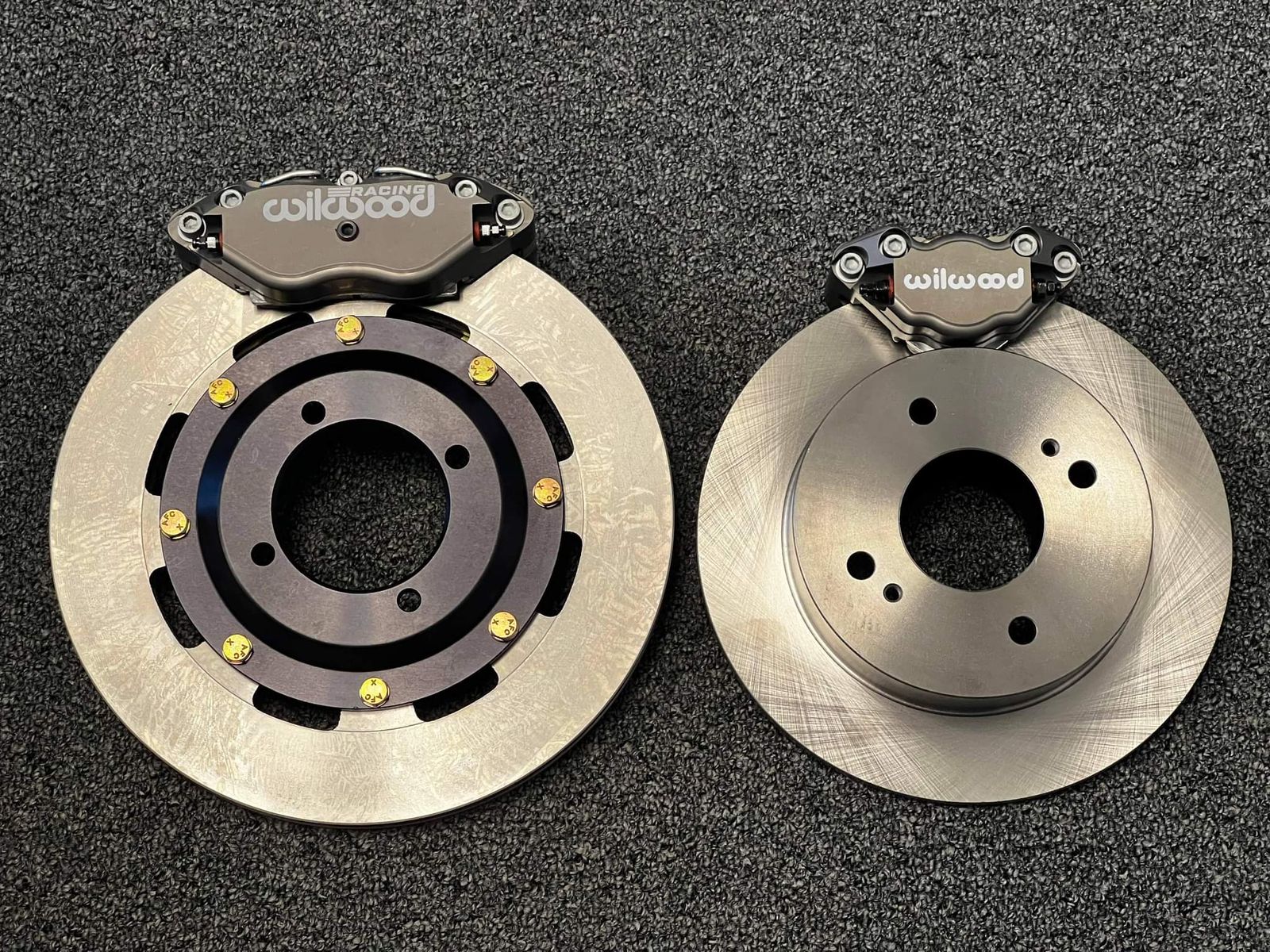

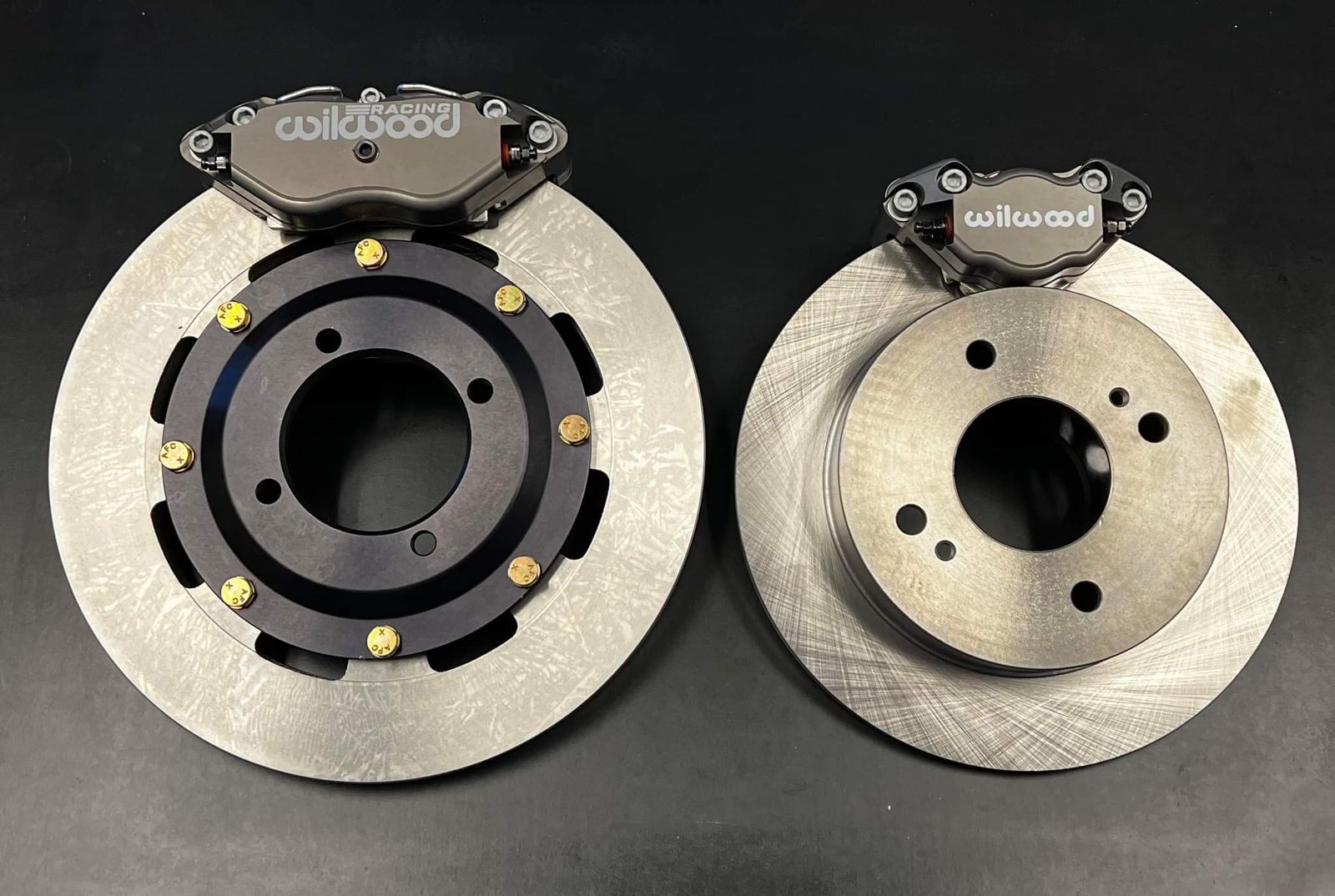

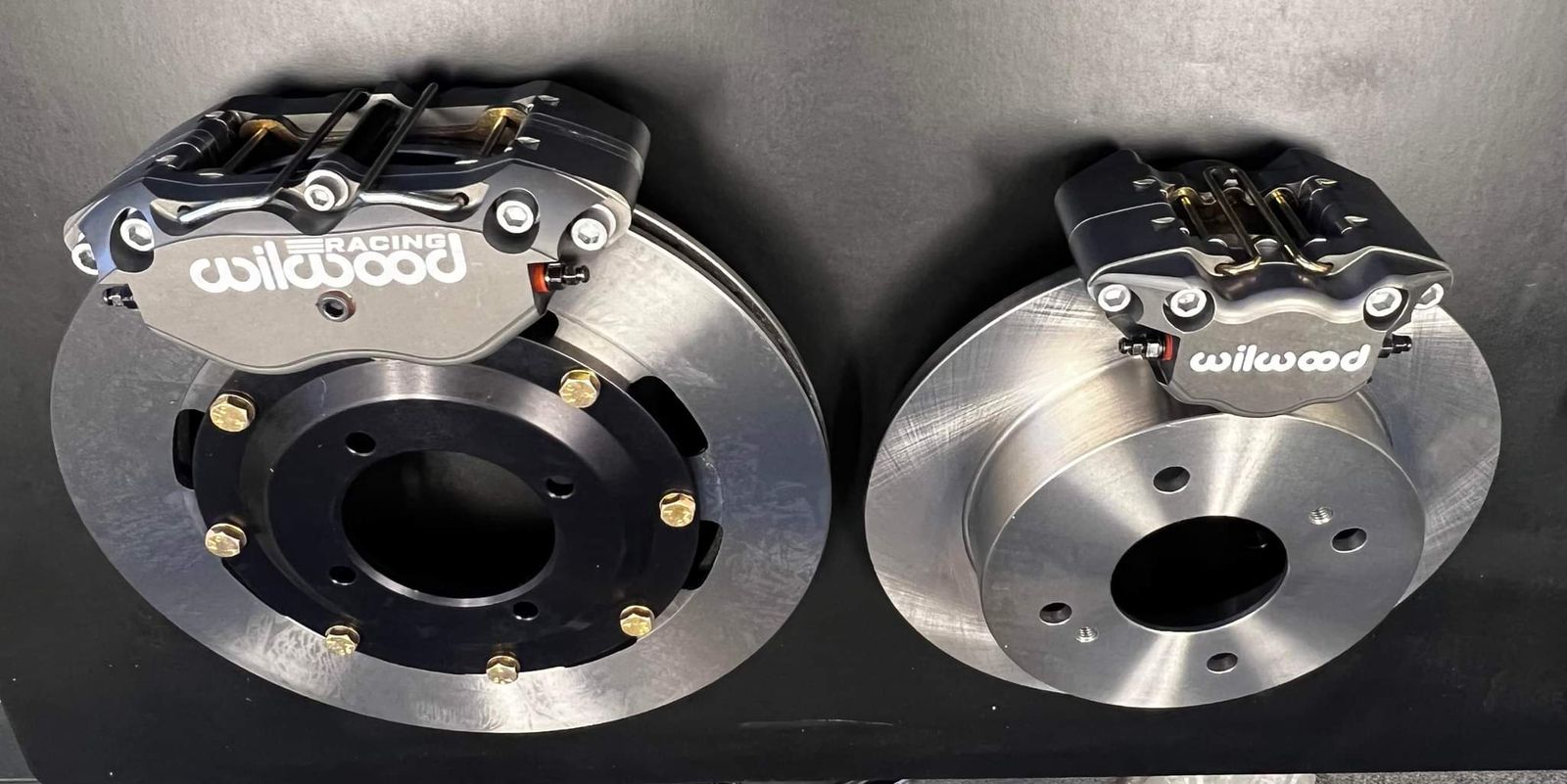

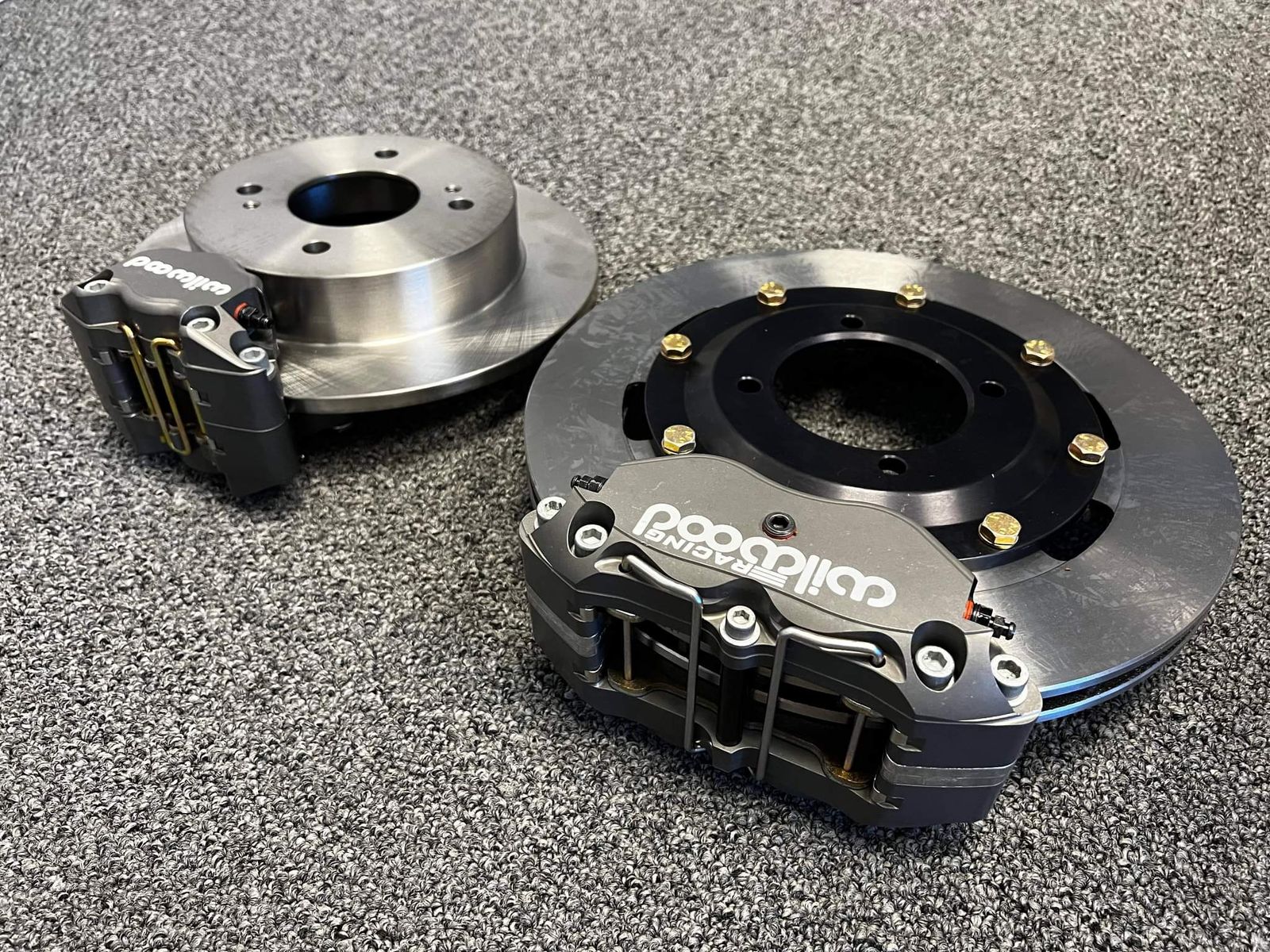

When it comes to disc brakes in the front and back, Wilwood does it best. Complete kit comes with new stock placement 7/8" master cylinder, steel braided brake lines with adapters, front and rear pads, front and rear calipers, front and rear rotors, caliper adapters for front and rear, front rotor hats and hardware for complete bolt on installation.
Please note that this with be shipped in 2 separate boxes due to weight.

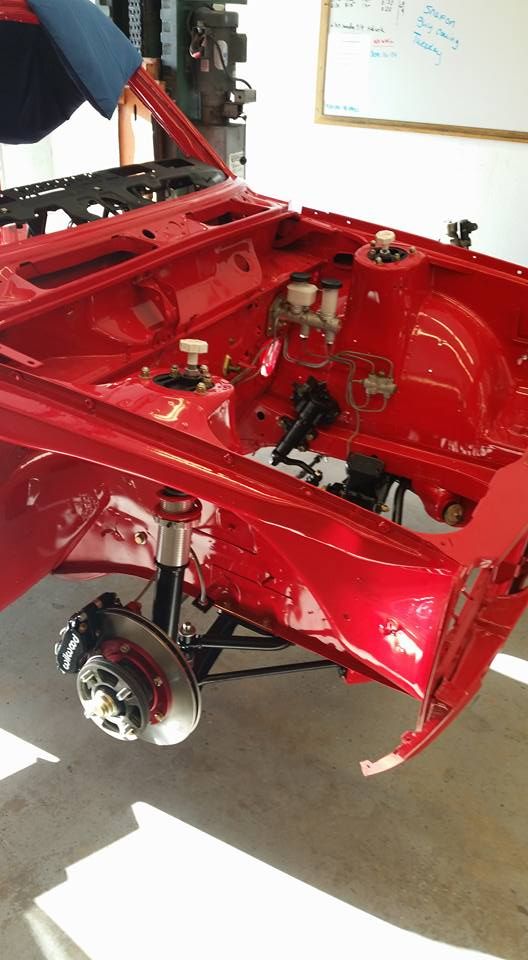

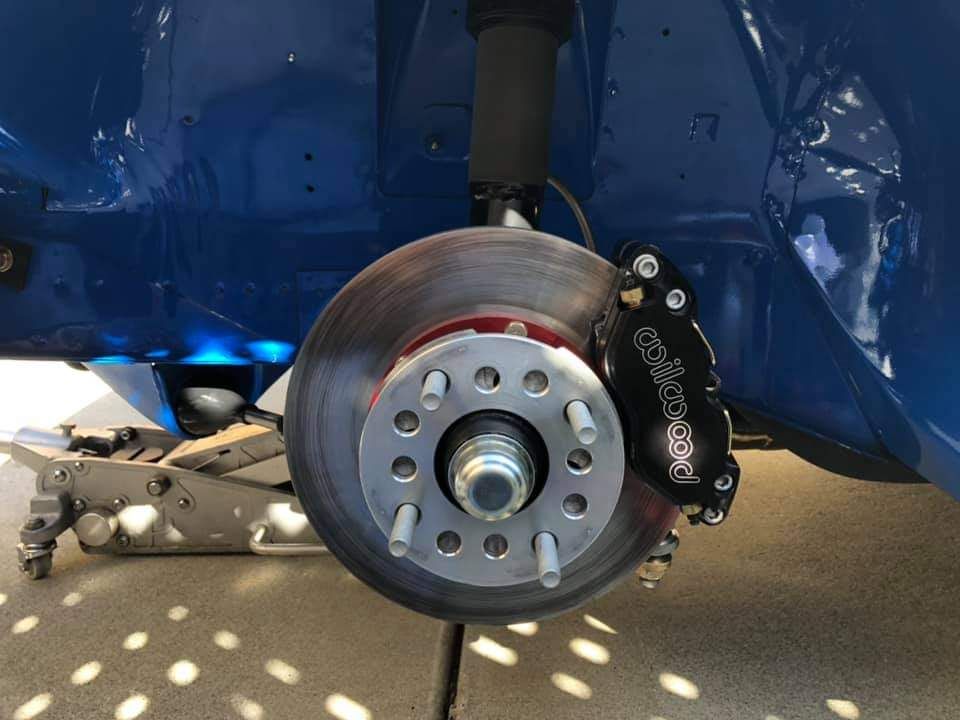

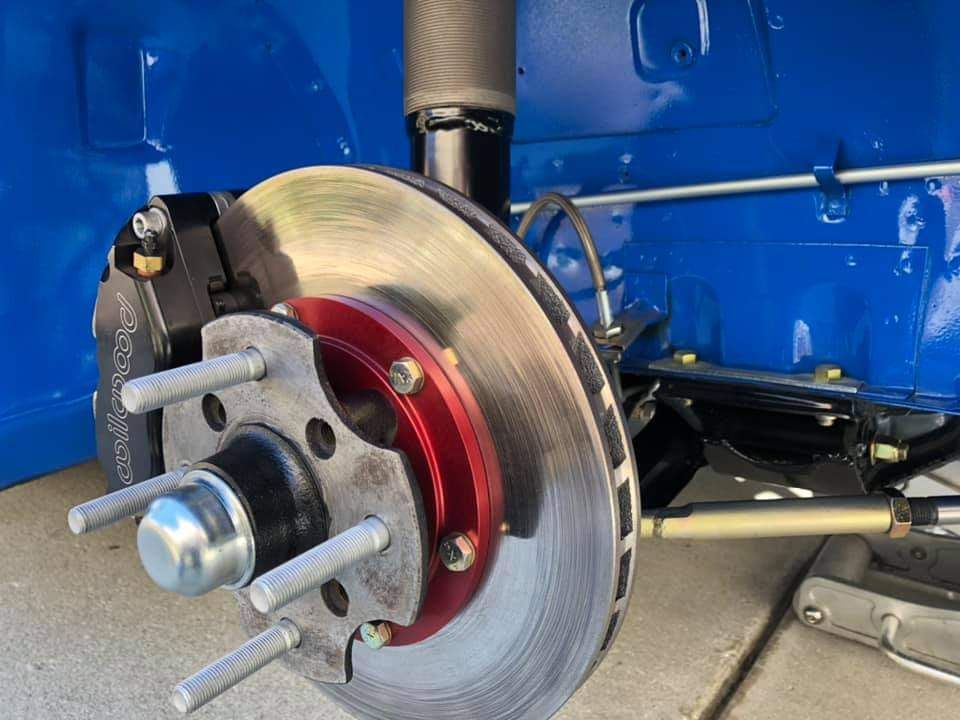

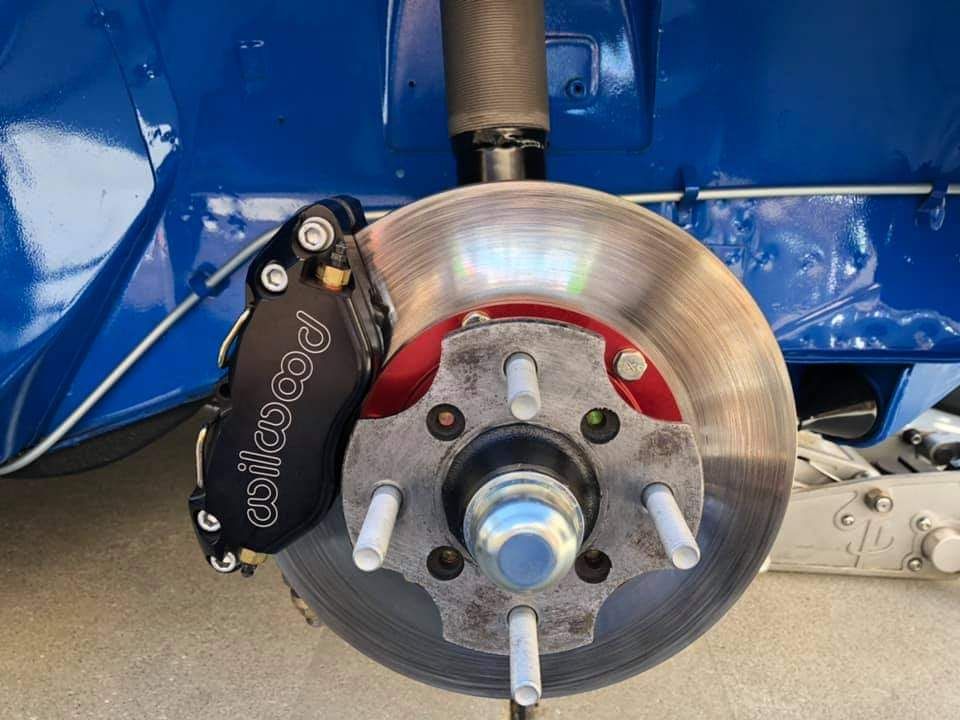

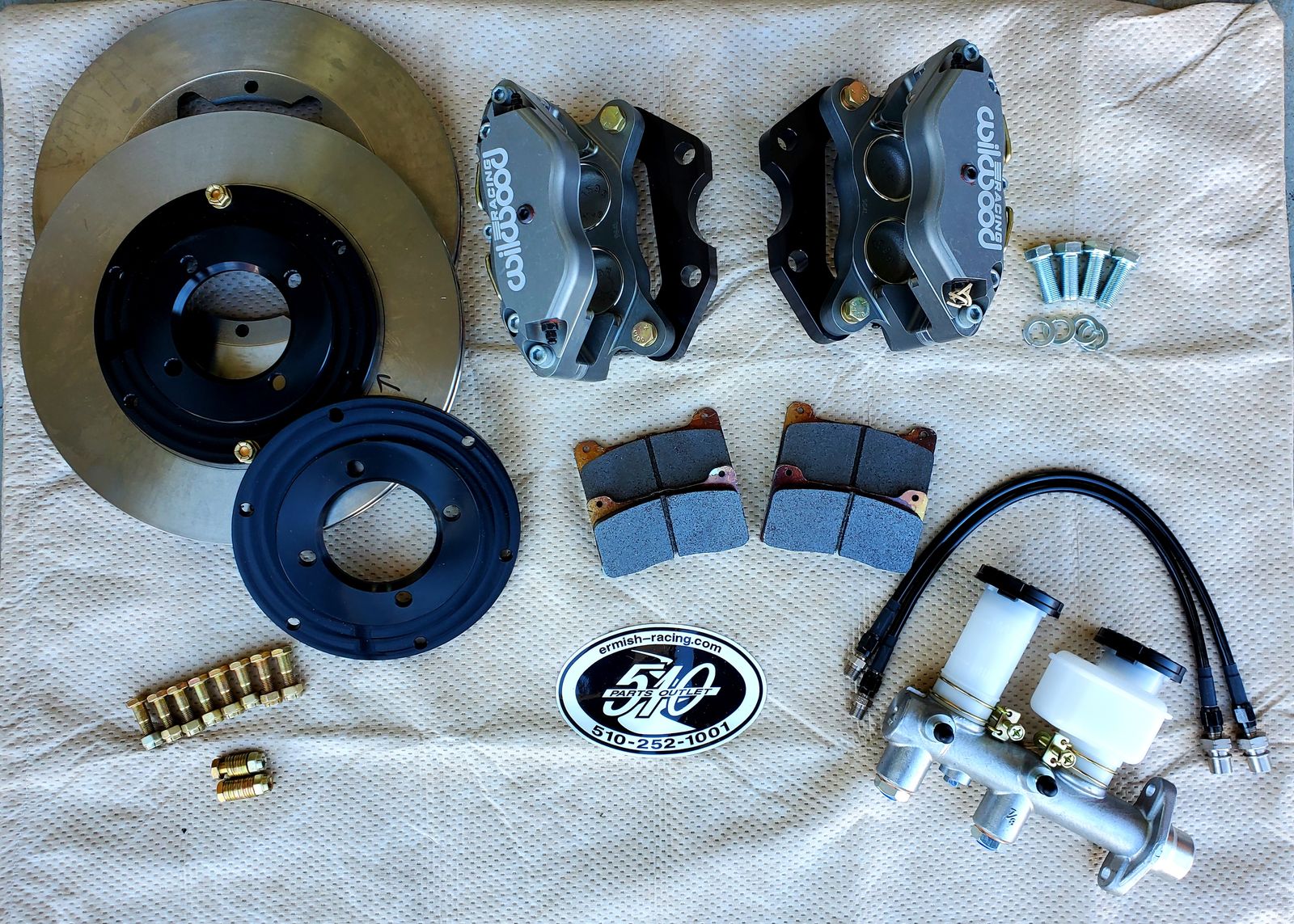

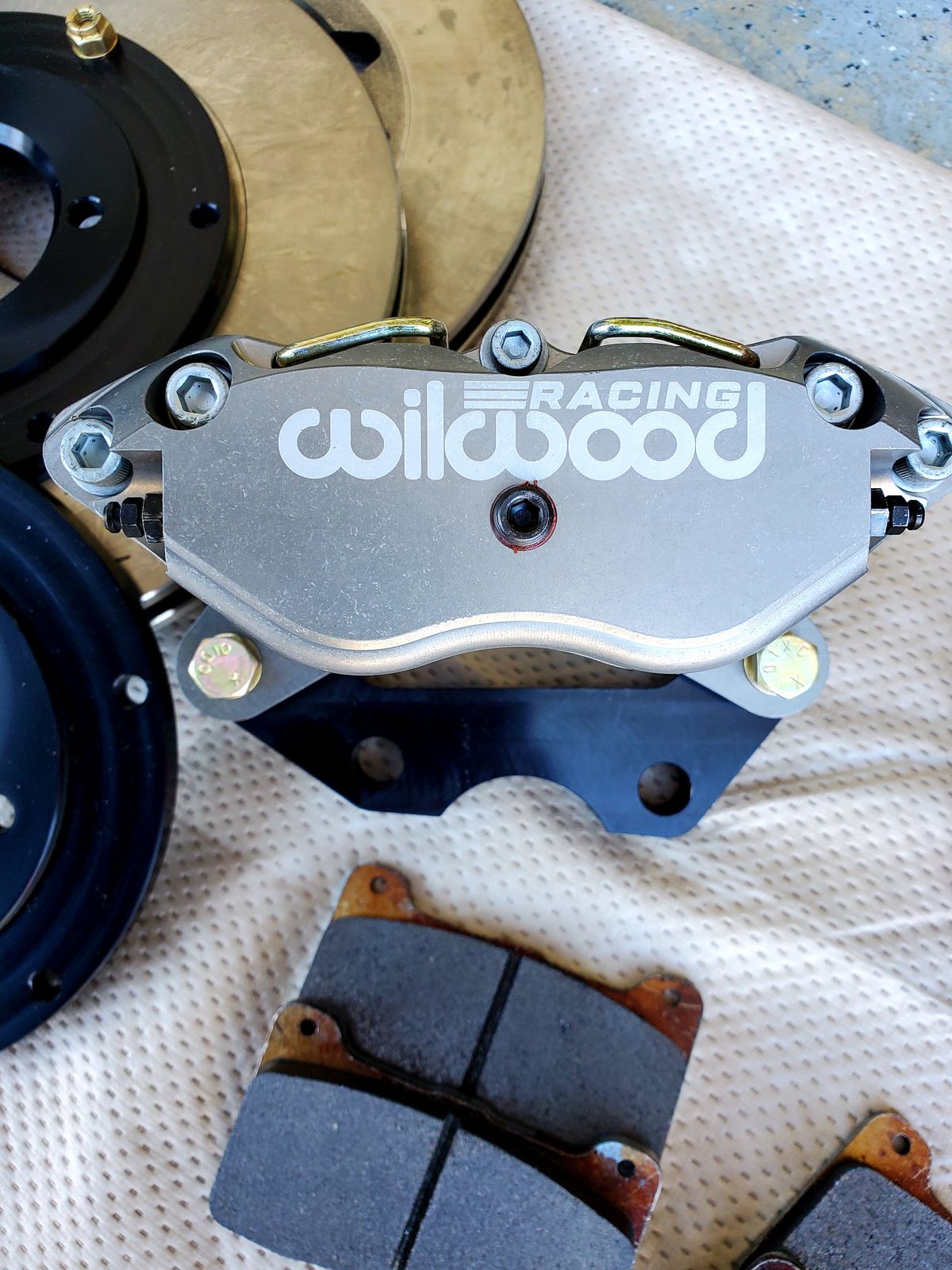

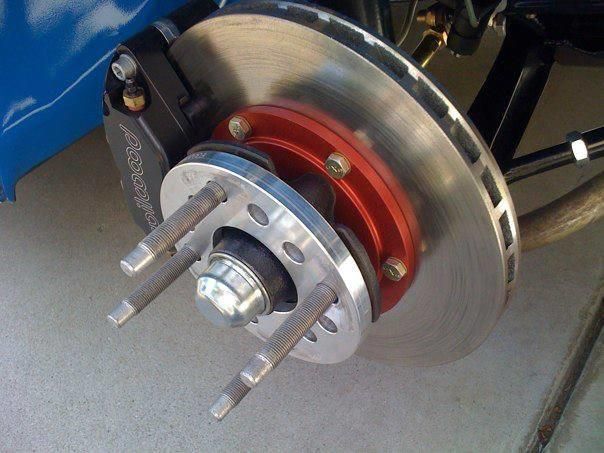

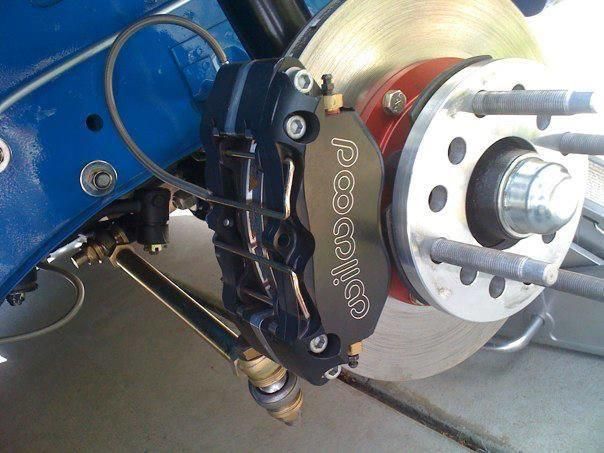

Datsun 510 front brake kit includes; Calipers, adapters, rotors, hats, hardware, pads, front braided brake lines and master cylinder.

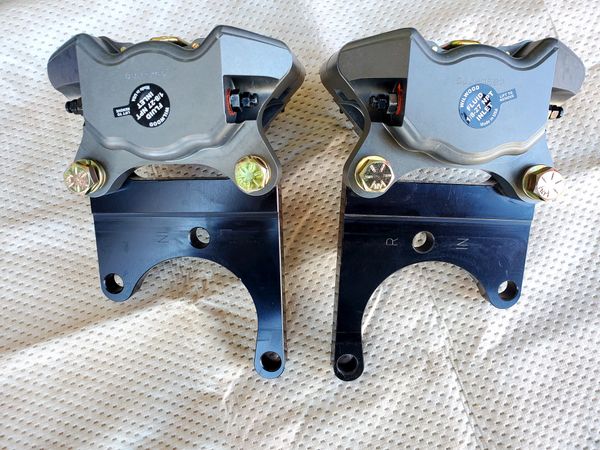

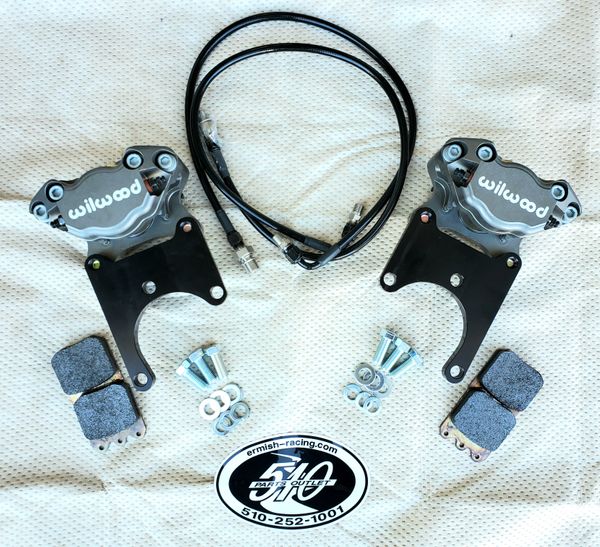

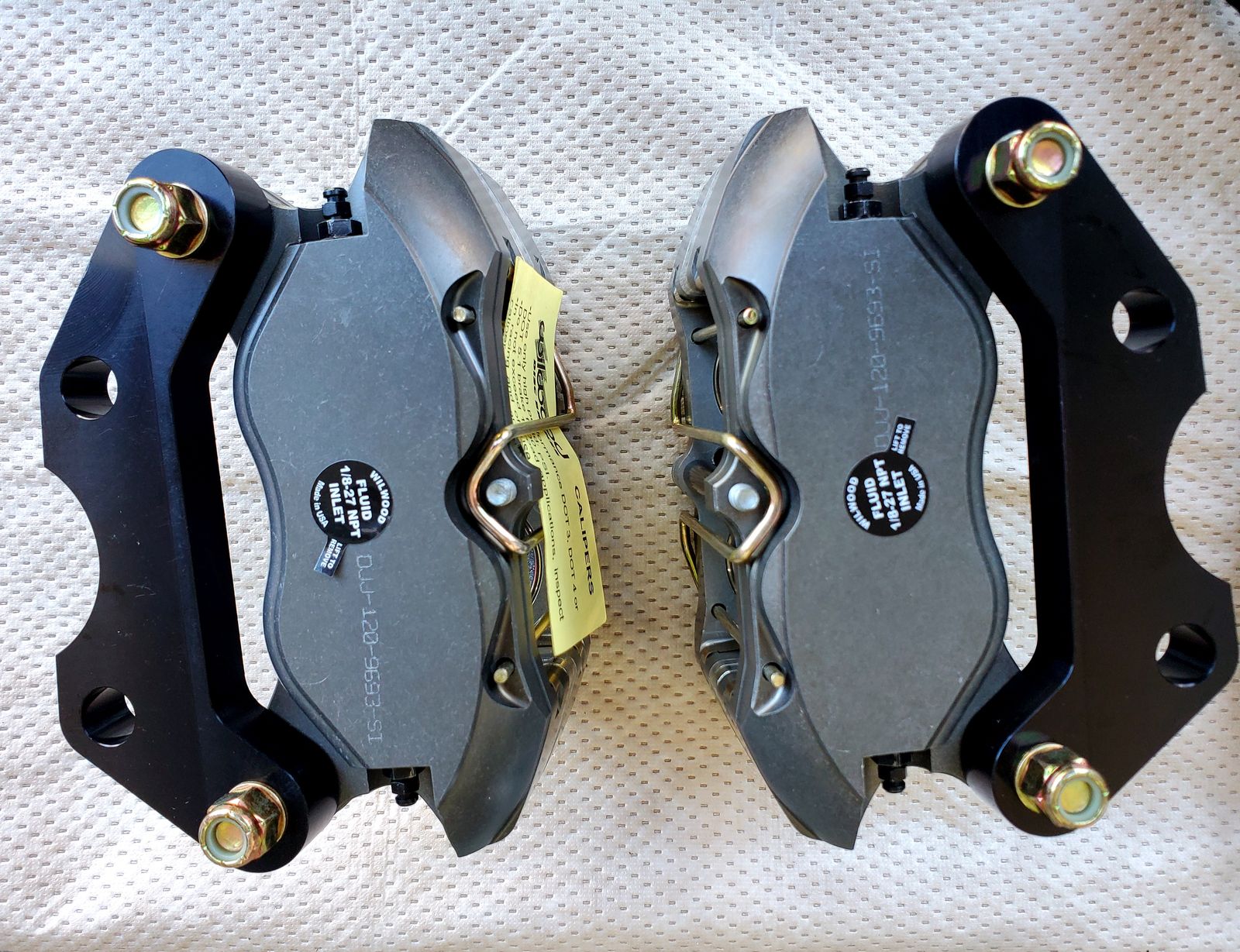

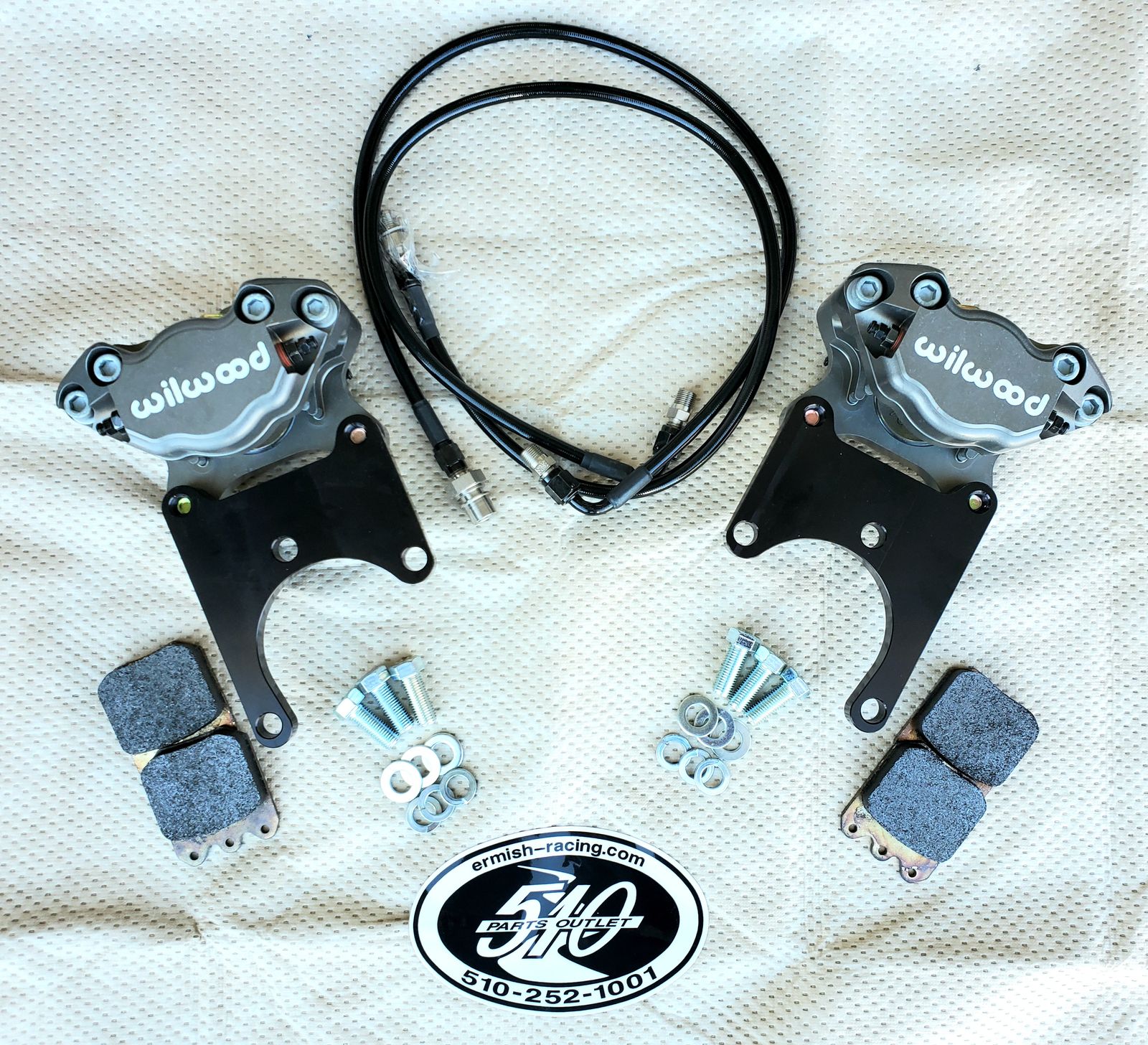

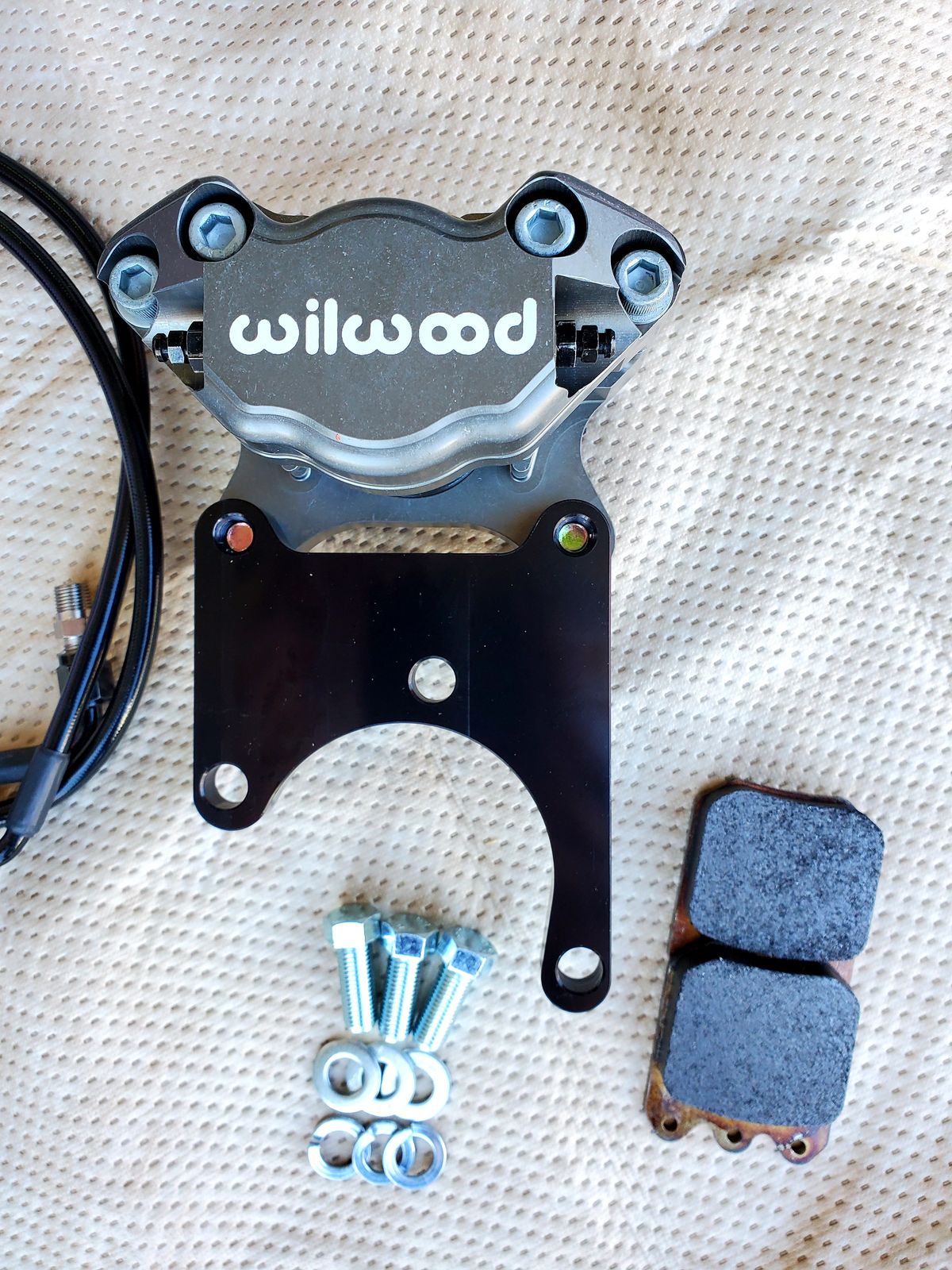

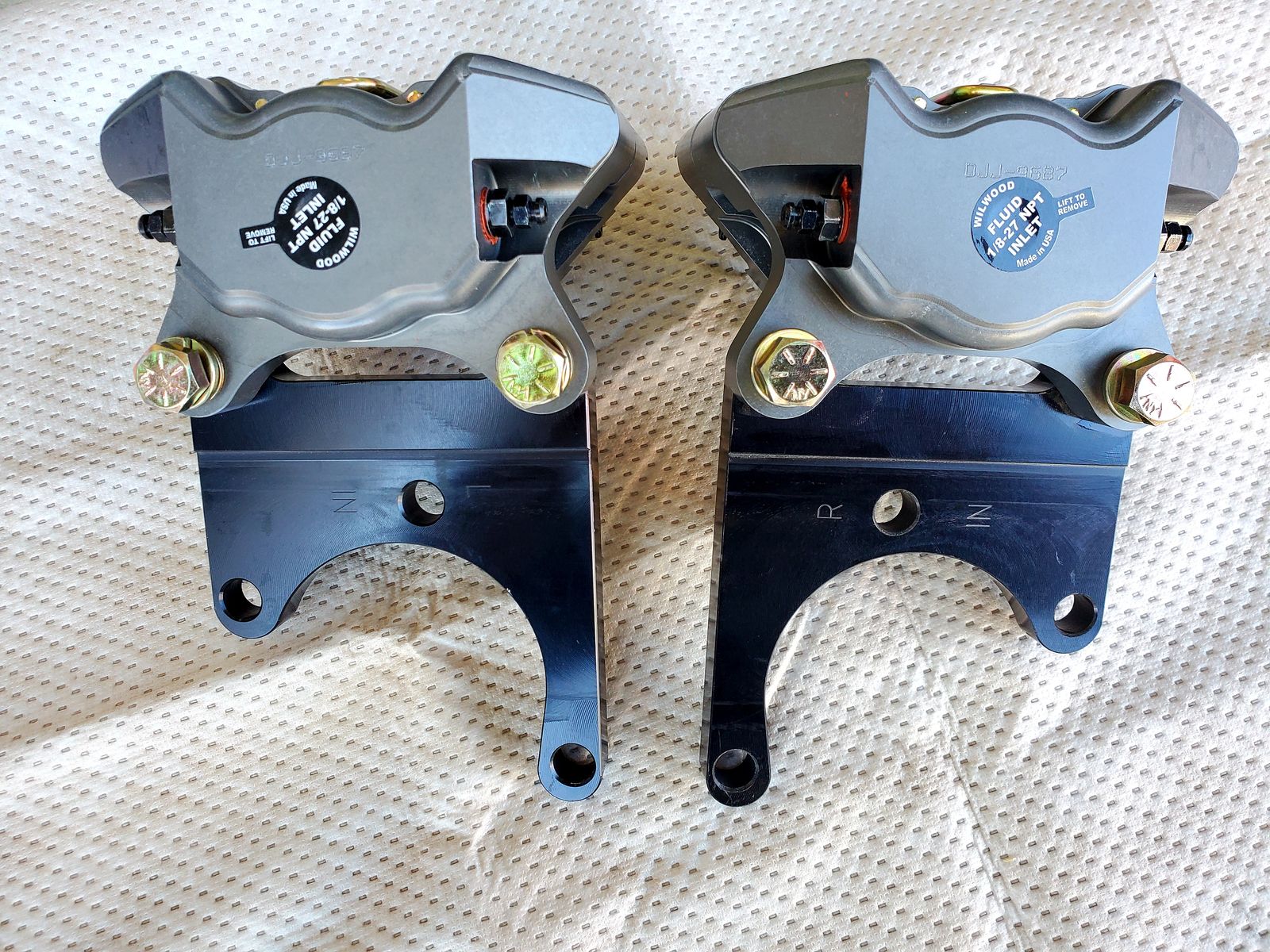

Datsun 510 rear Wilwood Disc Brake Kit. Includes; Calipers, adapters, hardware, rear rotors, brake pads and rear braided brake lines.
Datsun 510 Aluminum Hubs $1,000.00 pair. Includes Wheel studs, new bearings, races & seal. Can be machined to include any additional spacer height.

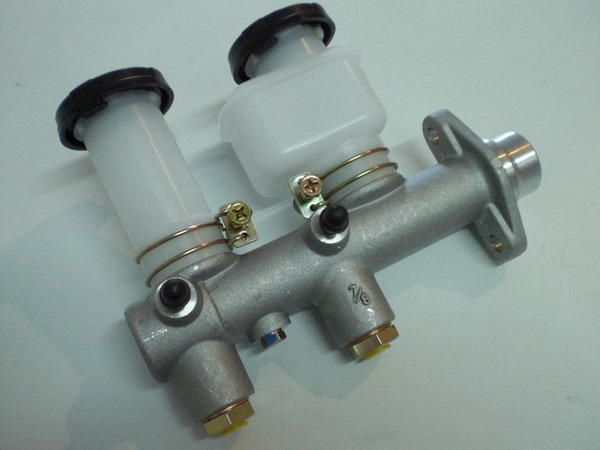

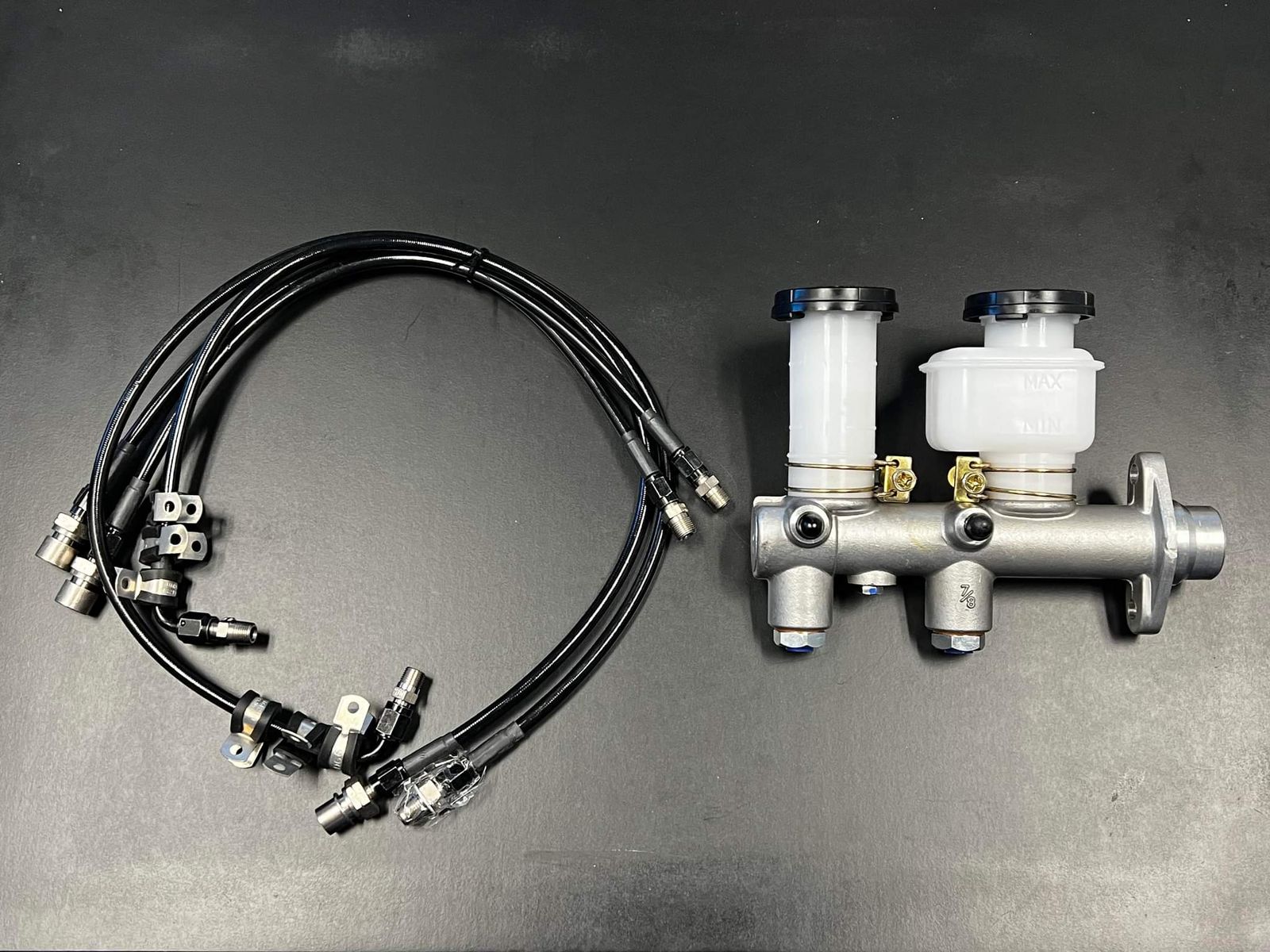

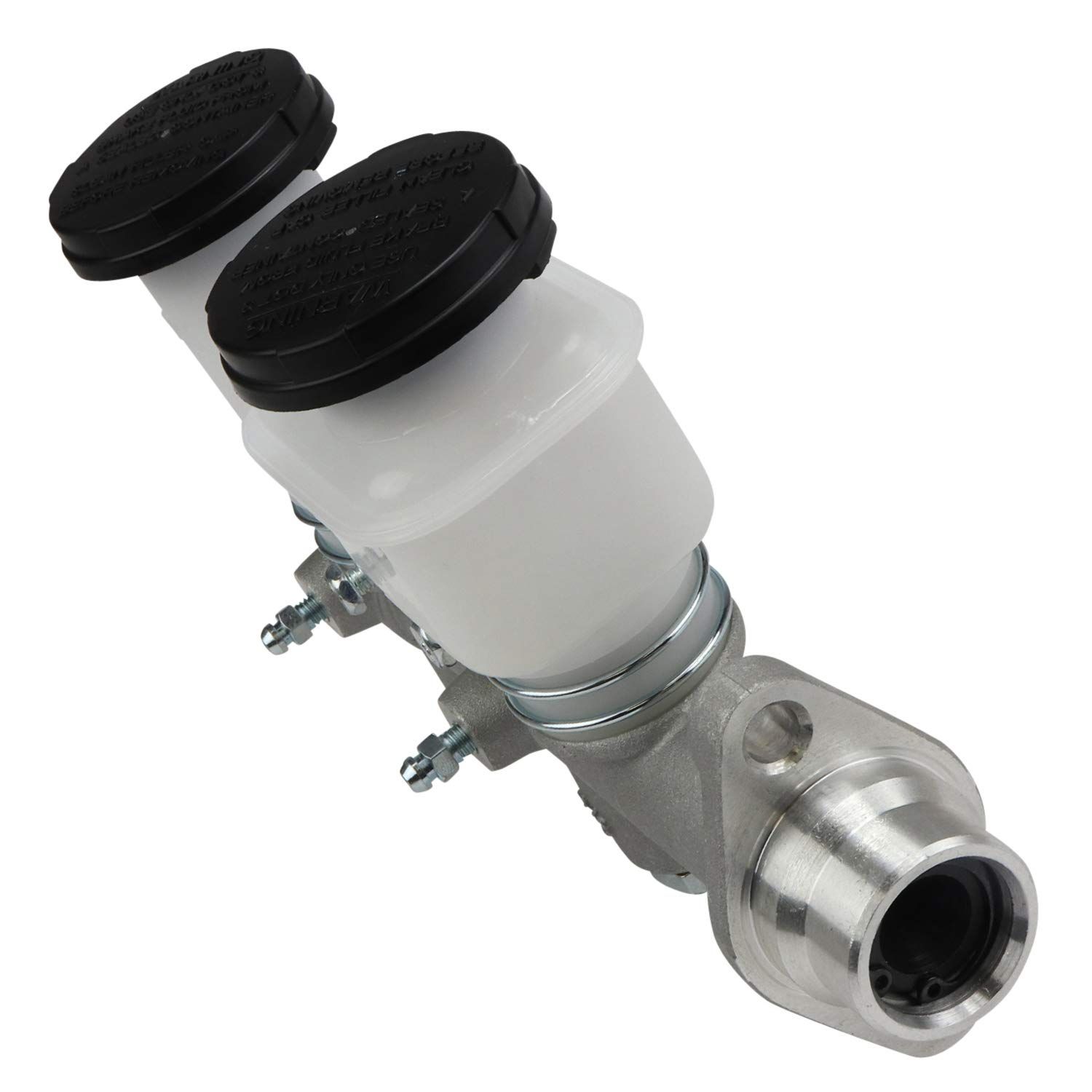

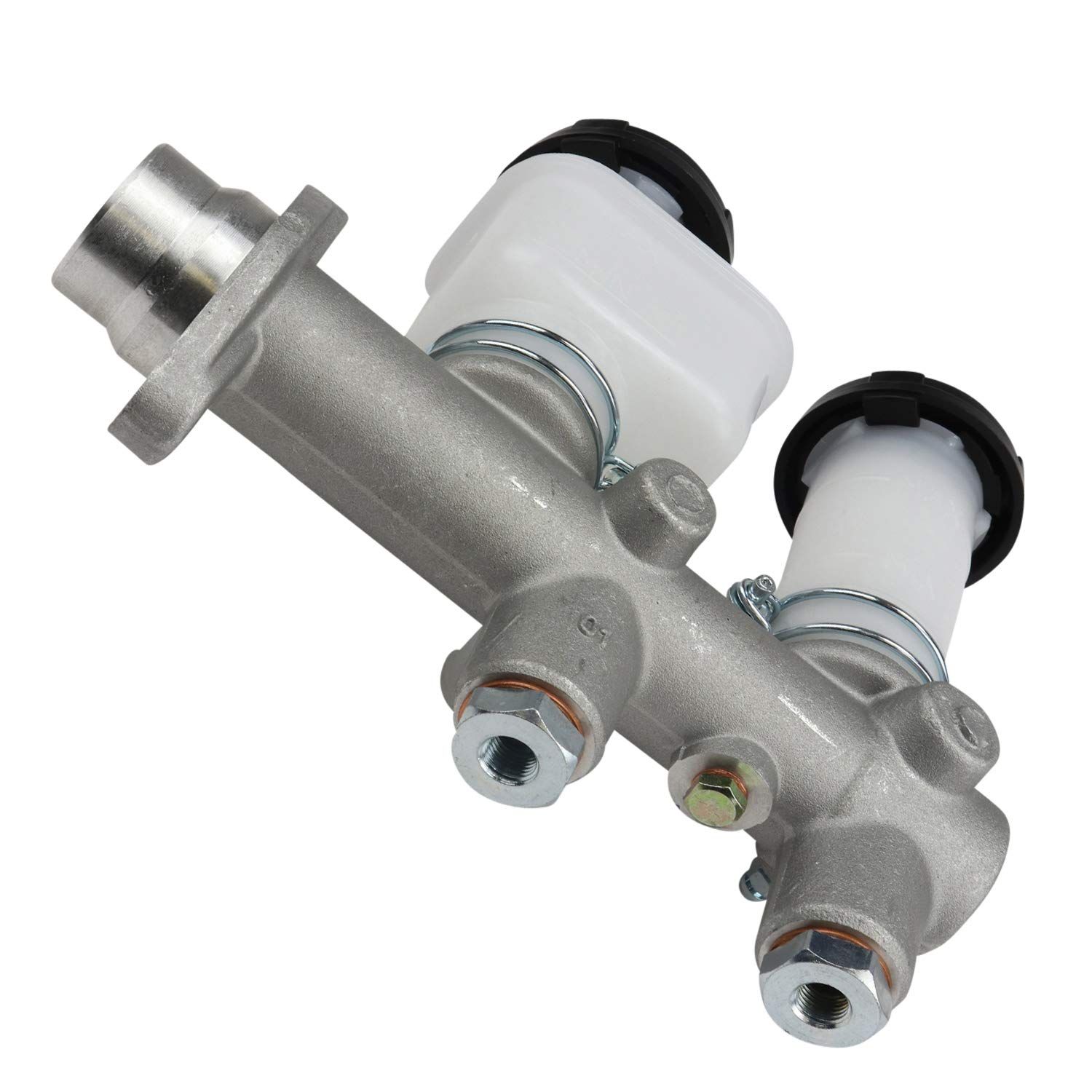

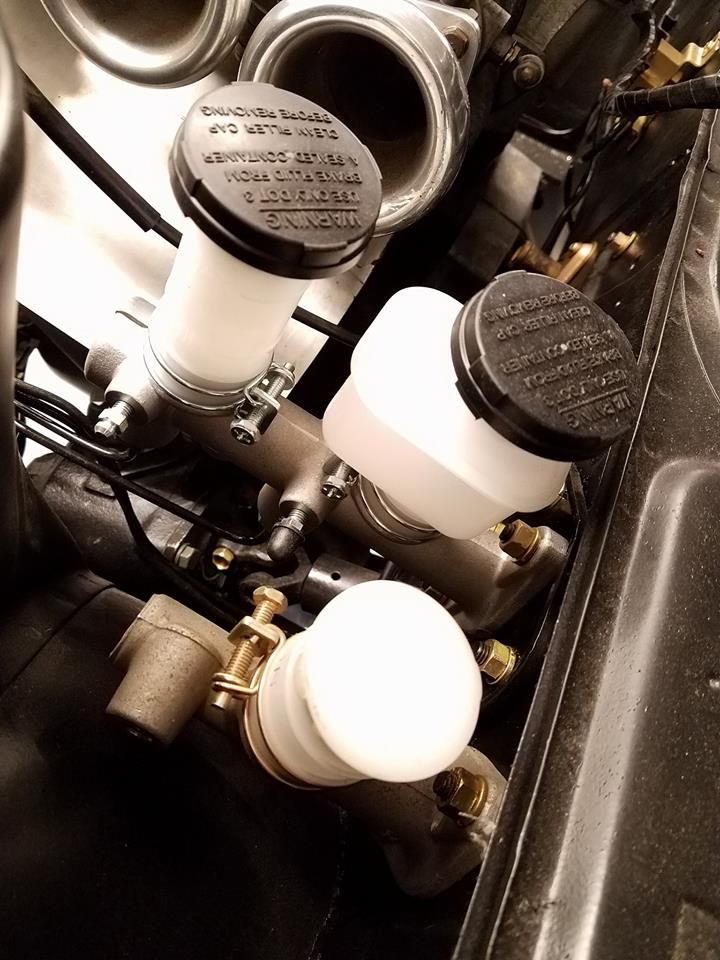

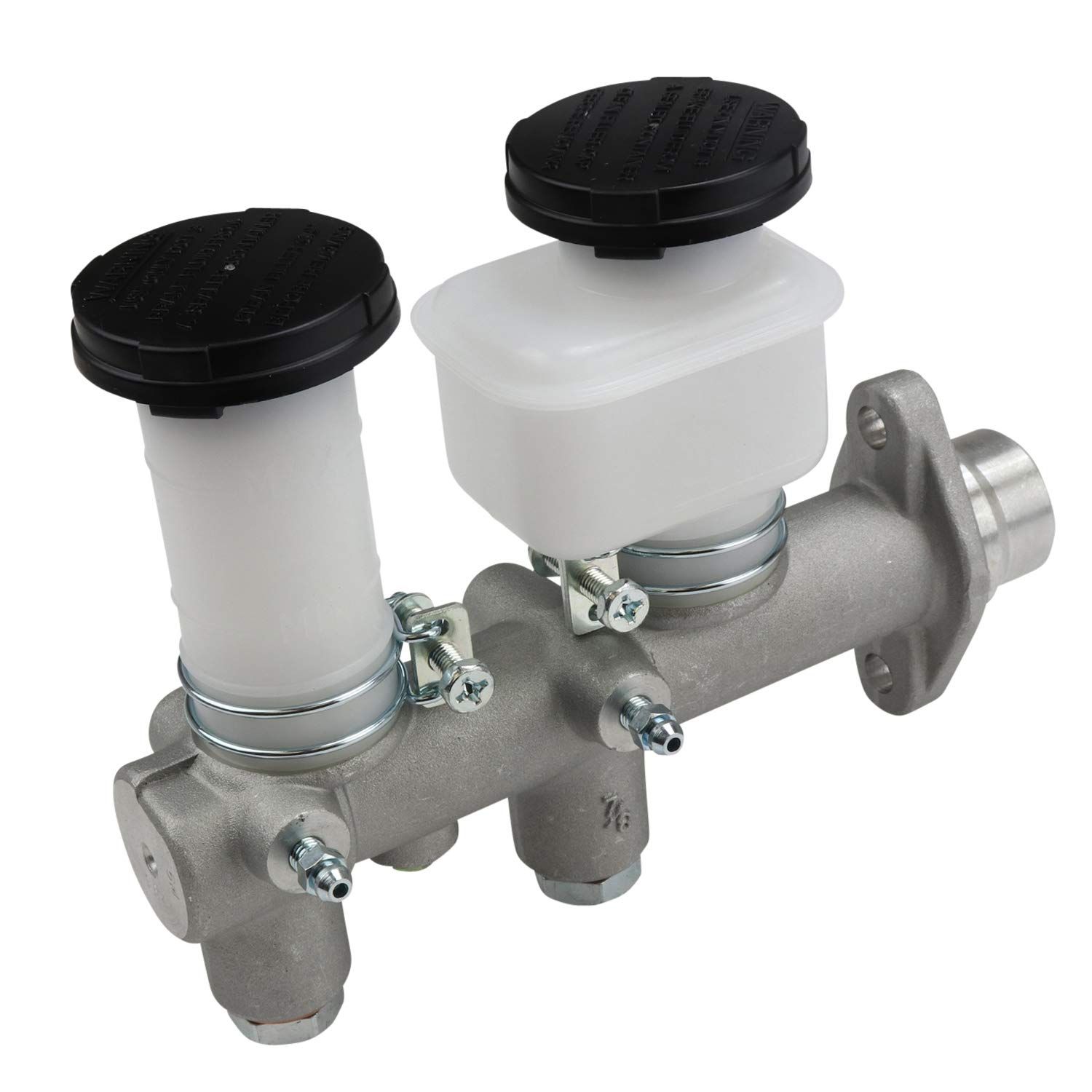

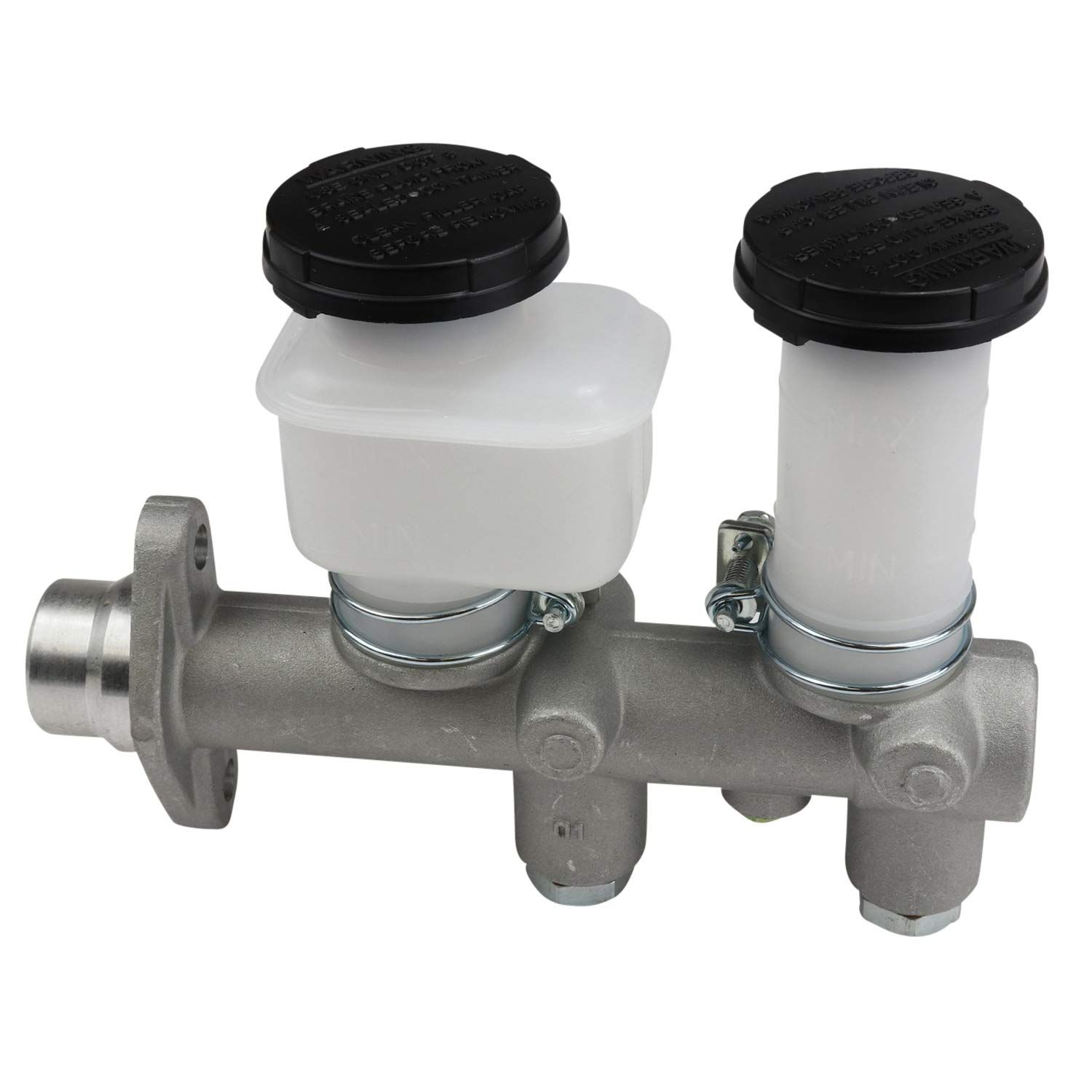

Stock placement 7/8" Master Cylinder can be used with Wilwood and ZX upgrade. (NOT TO BE USED WITH A BRAKE BOOSTER)

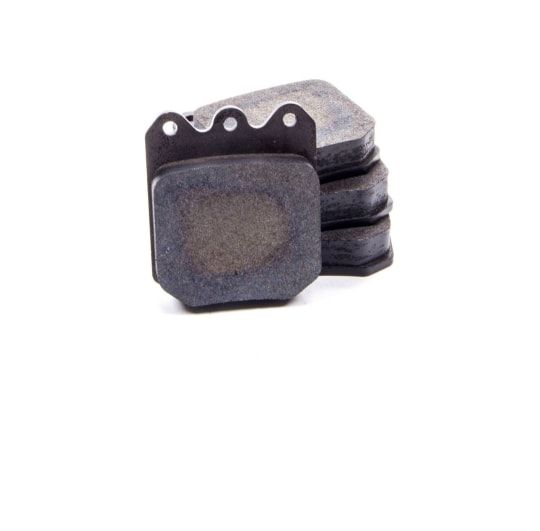

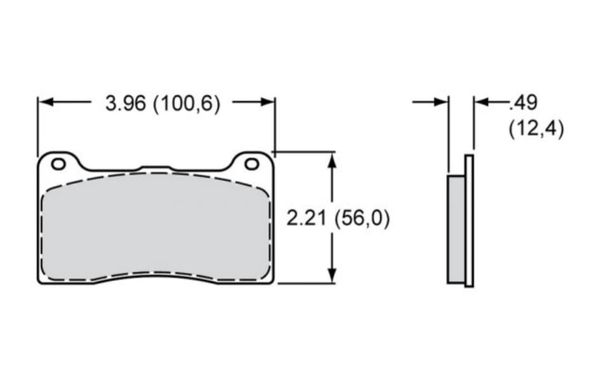

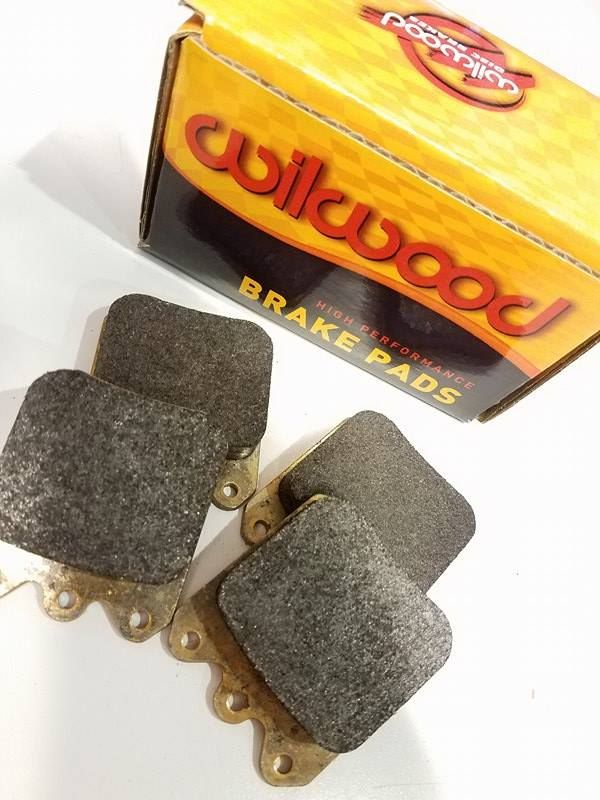

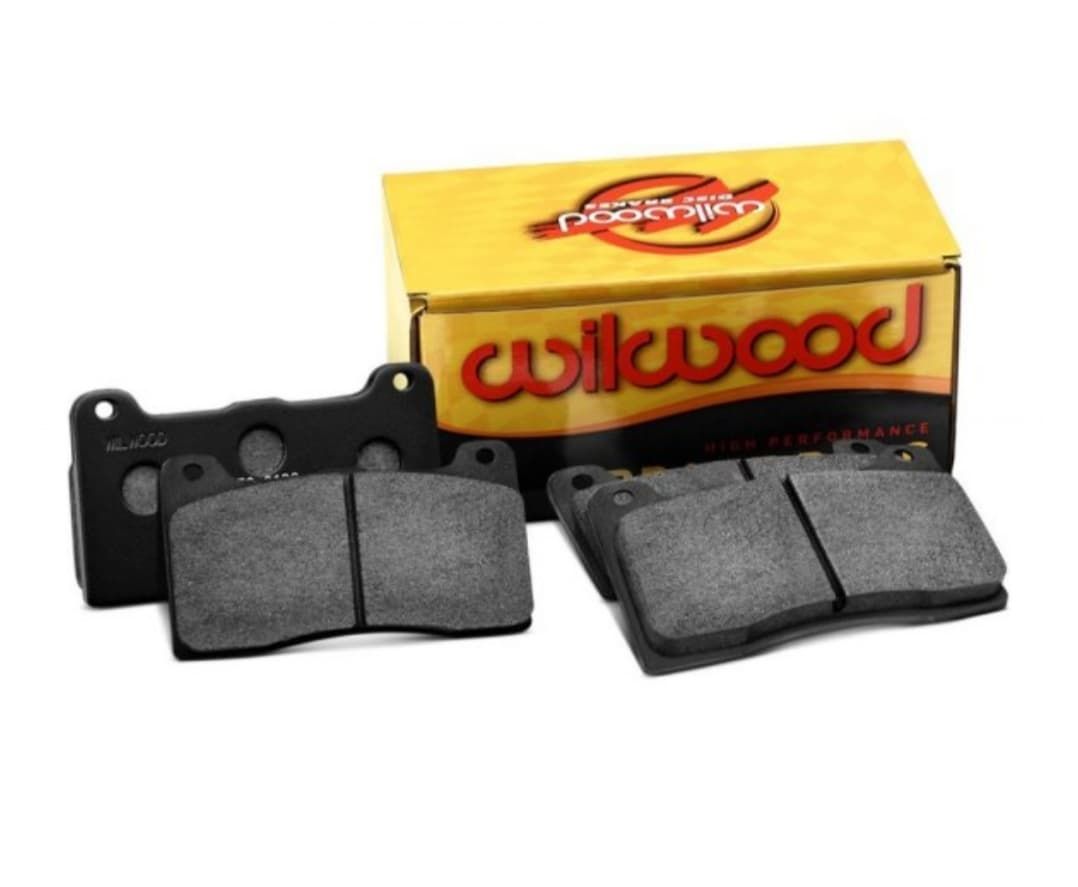

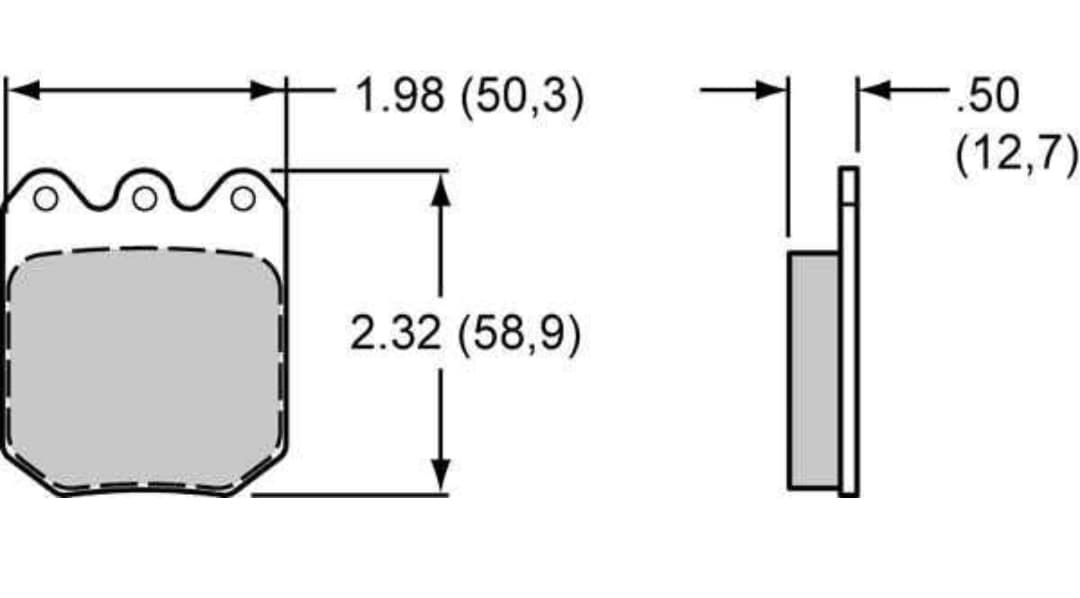

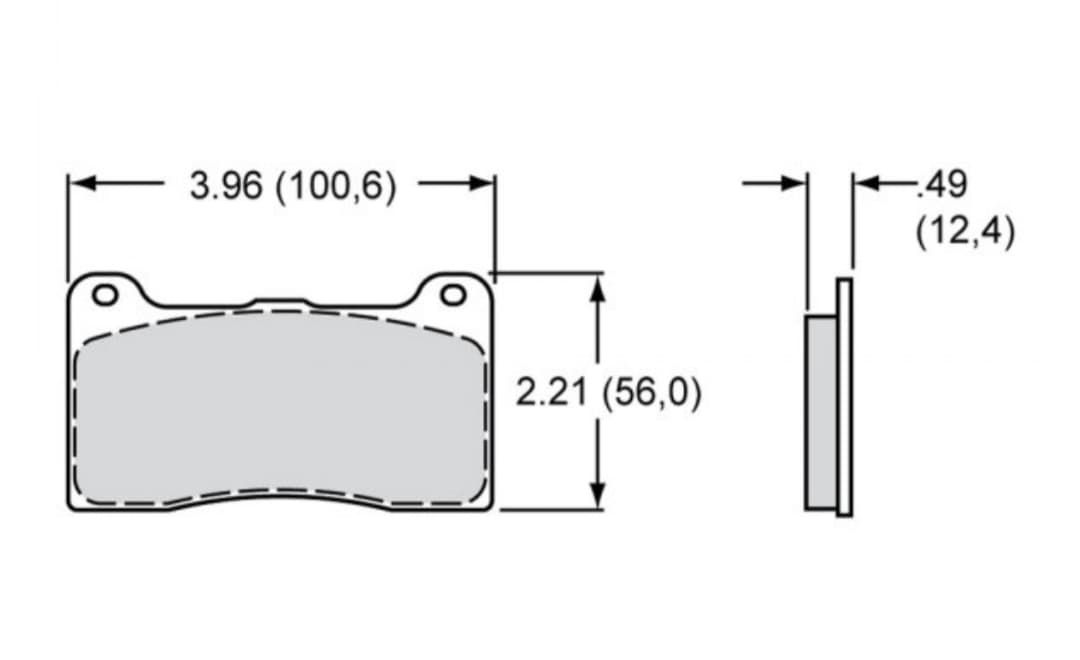

They have a progressive response rate as pedal pressure and temperature increase to provide confident, repeated stops and outstanding modulation characteristics. The Wilwood Smart Pad BP-20 brake pads have a unique metallic composite formulation that provides an aggressive feel without the harsh noise, high rotor abrasion, and extreme dust levels associated with high metallic based compounds. Increase braking without raising the braking temperature with a set of these Wilwood brake pads!

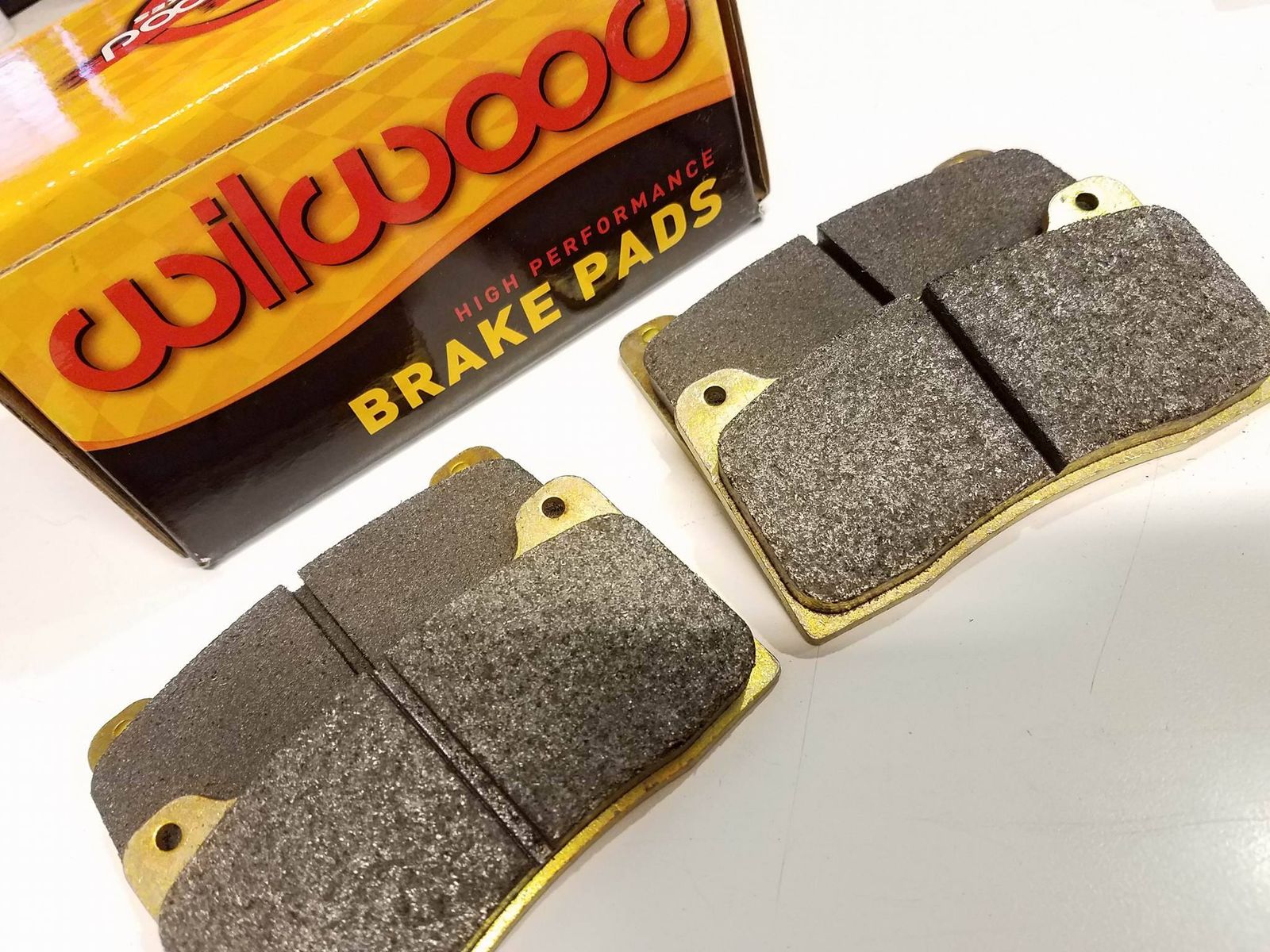

Wilwood's Smart Pad BP-20 brake pads feature an extended temperature range over the BP-10 brake pads. They have a progressive response rate as pedal pressure and temperature increase to provide confident, repeated stops and outstanding modulation characteristics. The Wilwood Smart Pad BP-20 brake pads have a unique metallic composite formulation that provides an aggressive feel without the harsh noise, high rotor abrasion, and extreme dust levels associated with high metallic based compounds. They work well in medium to heavy-duty braking dirt oval tracks, advanced-level track day and club sport competition, extreme-duty dual purpose street/track vehicles, high-speed or heavyweight drag cars, and hobby or sportsman category asphalt racing. Increase braking without raising the braking temperature with a set of these Wilwood brake pads!
Rotor Dimensions
Width (in): 0.81
Diameter (in): 10.75
Rotor Design
Material:: Iron
Vane Count: 30V
Weight(Lbs): 7.4lbs
Rotor Style & Finish
Type: ULHP
Style: Plain Face
Surface Finish: Plain
Rotor Upgrades
Bedded: NO
Balanced: NO
Rotor Bolt Circle (in): 6 x 6.25
Rotor Mount Hole Size (in): 0.326
Lug ID / Registration (in): 5.59
Far Side Inside Diameter (in): 7

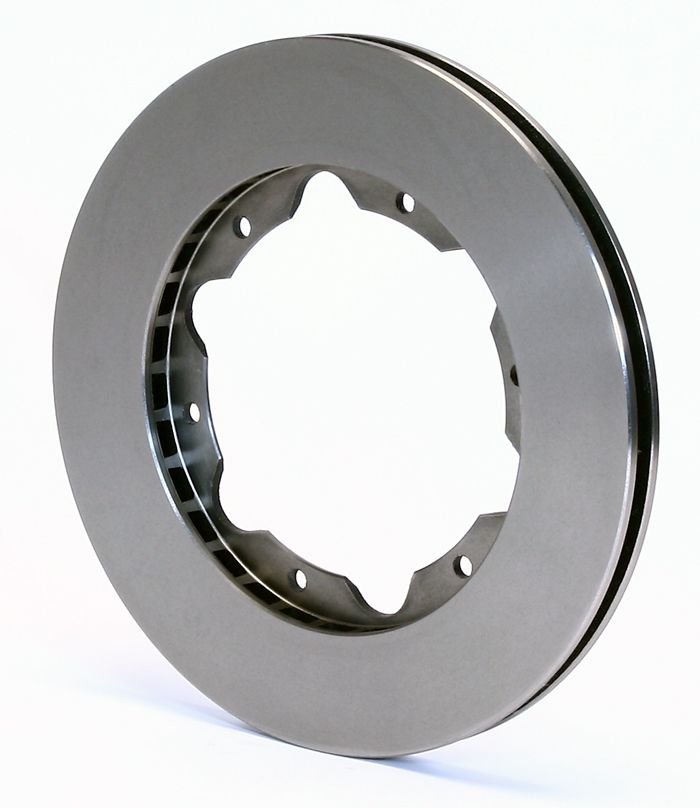

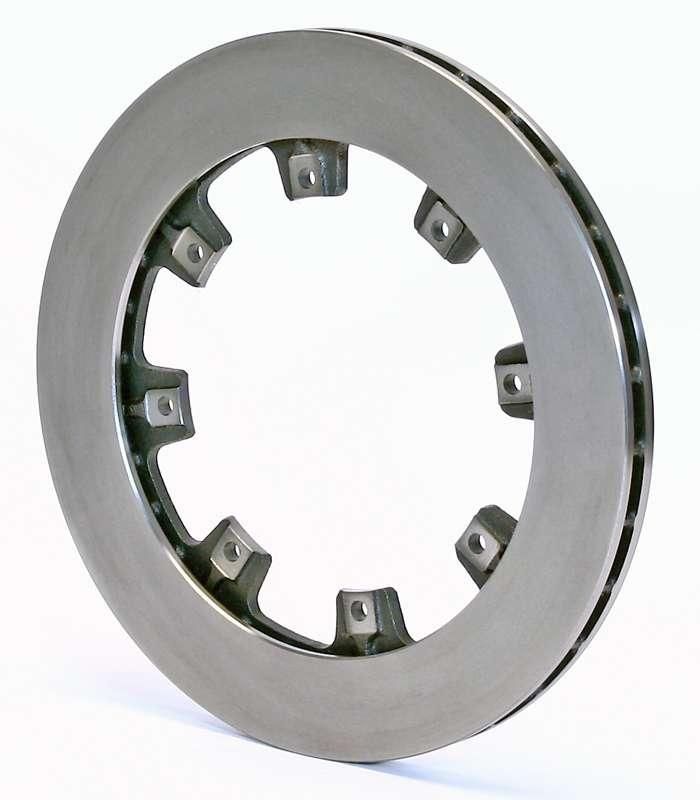

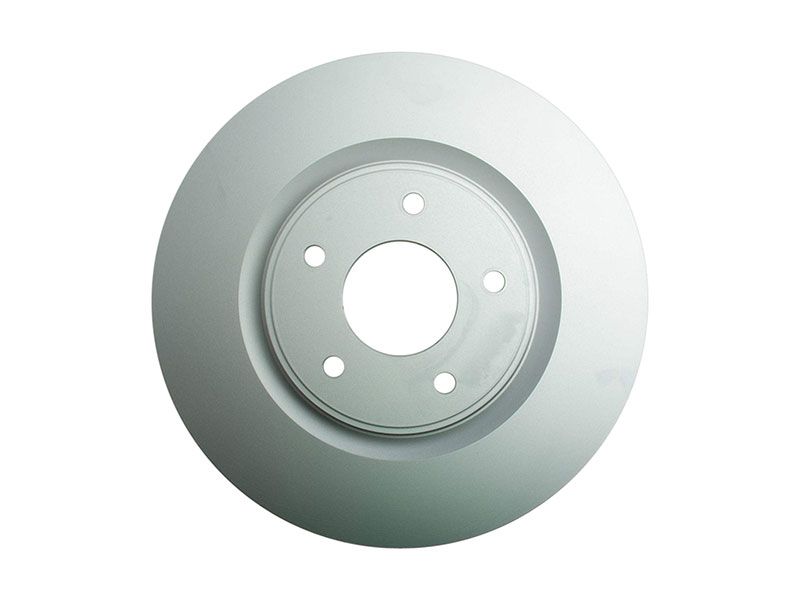

Ultra-Light straight vane rotors provide high value performance and rugged durability for a wide range of competition, high performance, and sport driving applications. Do not confuse these rotors with bargain priced off-brand named parts. Wilwoods modern manufacturing capability, combined with large scale economics, make it possible to offer this level of quality and performance at such an affordable price. These rotors are replacements for the Datsun 510 Wilwood kit sold on our website. Sold Individually
Rotor Dimensions
Width (in): 0.81
Diameter (in): 12.19
Rotor Design
Material: Iron
Vane Count: 32V
Weight(Lbs): 8.9
Rotor Style & Finish
Type: UL
Style: Plain Face
Surface Finish: Plain
Rotor Upgrades
Bedded: NO
Balanced: NO
Rotor Bolt Circle (in): 8 x 7.00
Rotor Mount Hole Size (in): 0.326
Lug ID / Registration (in): 6.38
Far Side Inside Diameter (in): 8.56
Wilwood Brake Rotors provide a durable lightweight option in applications where sustained temperatures remain in the low to moderate range, and high heat spikes are only observed on an intermittent basis. This could be anything from a hard stopping drag race car at the end of a quarter mile, or a high speed stock car coming in from a qualifier at a super speedway. Wilwood Brake Rotors can also be found in lighter weight open wheel cars such as sprints and modifieds, and a variety of light weight, open wheel road course racers. A special alloy and proprietary manufacturing processes give these rotors high resistance to thermal distortion with excellent friction and wear characteristics against the pads. The rotor is designed to be a replacement for our 280zx big brake kit sold on our online store. Sold Individually

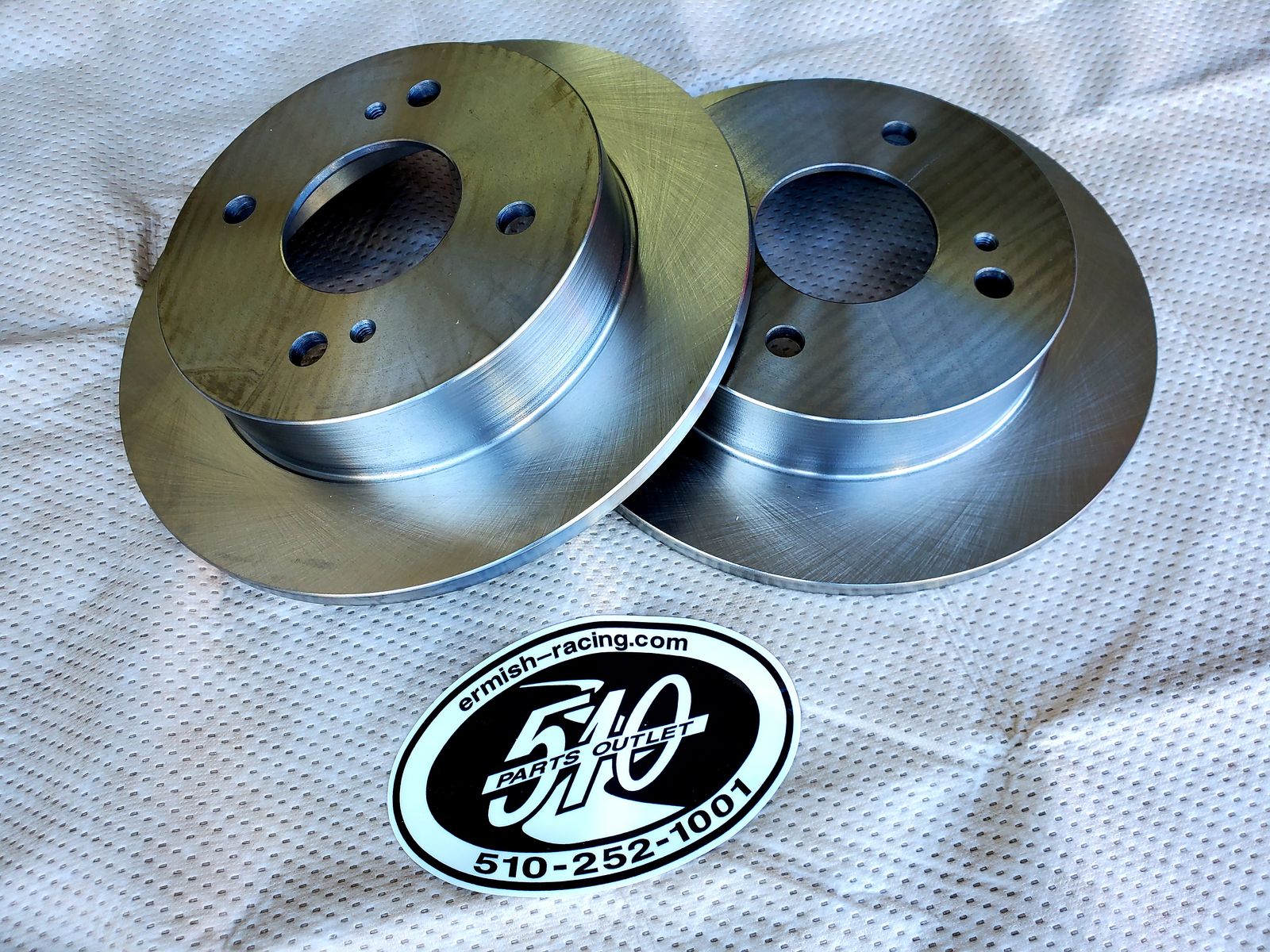

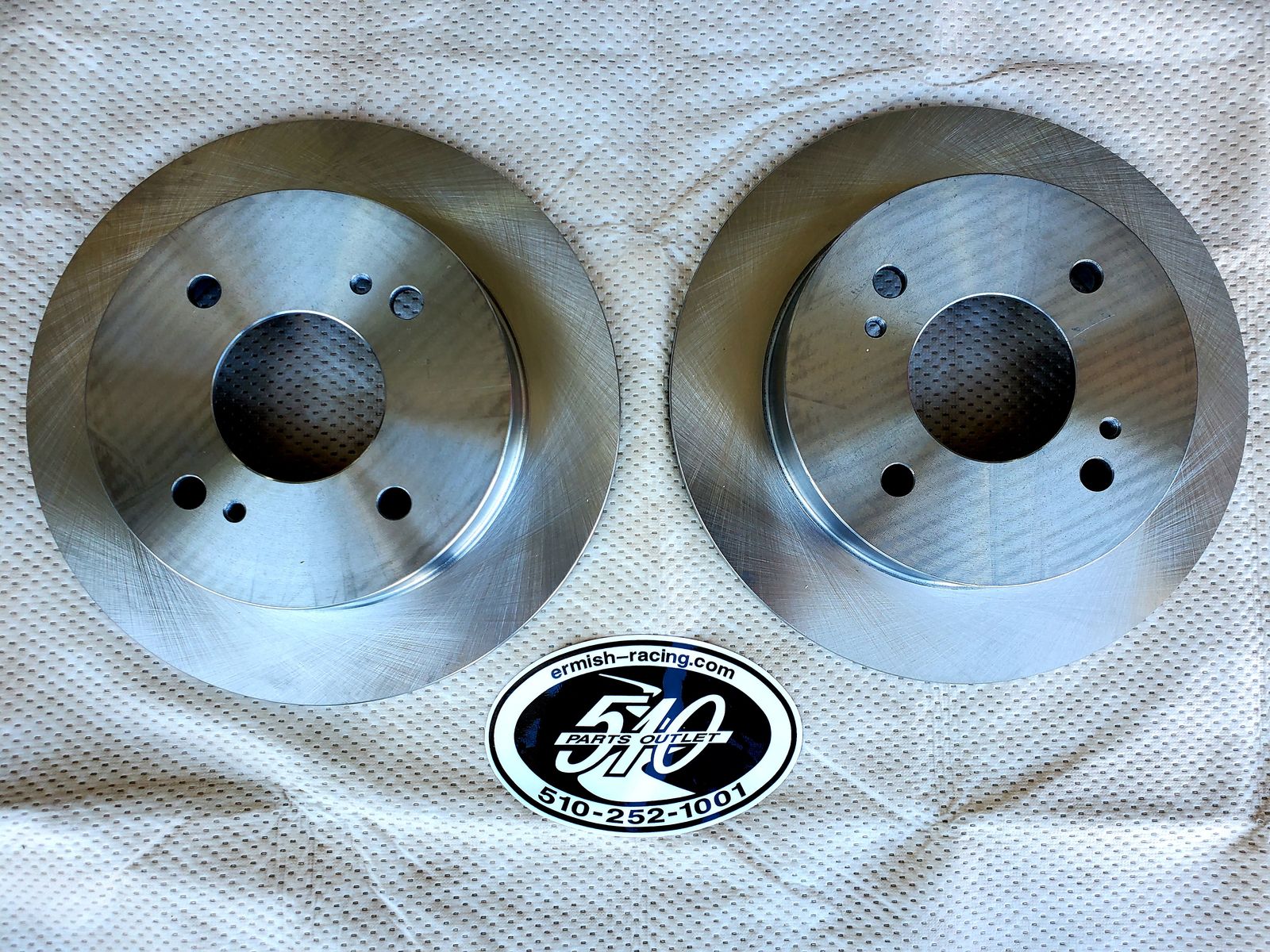

Rear replacement rotors for Wilwood Datsun 510 kits. (Sold in a pair)
If you would like to buy one individually please call the shop. 510-252-1001
